Lumit® IFN-γ (Human) Immunoassay

customize-this-small
View information on global supply logistics

No-Wash Immunoassay for IFN-γ Detection

  • Fast add-and-read protocol performed directly on cells
  • Luminescent detection with just a plate-reading luminometer
  • Scalable to 96- or 384-well plates

Size

Catalog number selected: W6040

$ 597.00
Your price:
Add to Cart
This product is discontinued
Request a Sample
Not available in all countries
This product is available under our Early Access program - Learn More
This product is available under our Catalog (FT) program - Learn More
Lumit® IFN-γ (Human) Immunoassay
100 assays
$ 597.00
Your price: Log in
Change Configuration

Quantify Cytokine Release Without Tedious Wash Steps

The Lumit® IFN-γ Immunoassay quantitatively measures released IFN-γ in cell culture samples using a simple, no-wash protocol. Just add labeled antibodies to the sample, add detection reagent and read luminescent signal using a standard plate-reading luminometer. The entire protocol is completed in less than 70 minutes! The assay can be used directly on cells in culture or culture medium transferred to a separate assay plate.

How the Lumit® IFN-γ Immunoassay Works

Primary antibodies to IFN-γ were selected for their specific and sensitive detection and labeled with the LgBiT and SmBiT subunits of NanoBiT® Luciferase. In the presence of IFN-γ, the subunits are brought together to form an active luciferase enzyme. Addition of optimized substrate generates a bright luminescent signal proportional to IFN-γ levels.

How the Lumit™ IL-2 Immunoassay Works

Simple One-Plate Protocol, No Wash Steps

Lumit™ IL-2 Immunoassay Workflow

Large Dynamic Range of Lumit® IFN-γ Detection

The pg/ml to ng/ml linear range of Lumit® detection covers expected concentrations for most cell models.

lumit ifn-gamma standard curve 17852ma

Assay

IFN-γ Human Immunoassay

Limit of Detection (LOD)

1.7pg/ml (3 SD above background)

Dynamic Range

7.3pg/ml – 10ng/ml

Minimal Detectable Dose (MDD)

1.1pg/ml (2 SD above background)

Assay Time

70 minutes

Sample Type

Cell culture supernatants

SD=Standard Deviation

Detect IFN-γ as a Marker of T Cell Activation

Data showing IFN-γ release as a Marker of T Cell Activation

Purified CD8+ T cells (effector cells) were combined with Raji B cells (target cells) and a serial dilution of Blincyto® (CD3 and CD19 bispecific T cell engager). The Lumit® IFN-γ (Human) Immunoassay reagents were added directly to treated cell wells to detect IFN-γ release from the T cells.

Multiple Cytokine Detection by Split-Sample Analysis

Split-sample analysis for detection of IL-2, IL-6, IFN-γ and TNF-α using corresponding Lumit™ Cytokine Immunoassay.18001ma

Human PBMCs were plated in a 96-well plate in 100µl and treated for 24 hours with cell stimulation cocktail (CSC), lipopolysaccharide (LPS) or R848. Four 20μl aliquots were transferred to a 384-well plate for detection of IL-2, IL-6, IFN-γ and TNF-α with the corresponding Lumit® Cytokine Immunoassay. This simple approach for profiling cytokine release can be applied to multiple cell models.

CAR T cell-mediated cytotoxicity and cytokine release in response to antigen expression on target cells

Explore a multiplexing approach that unlocks the full potential of CAR T cell therapy with our Lumit® IFN-γ and TNF-α (Human) Immunoassays.

View Application Note

Explore Additional Cytokine Detection Assays

We offer a growing portfolio of assays to detect cytokines in cell culture samples.

Can’t find your target in the list?

Please enquire about early access to new assays in development.

For a biotech that understands time is of significant value, the Lumit® Immunoassays are an essential way for us to gather reliable data fast so that we can reach conclusions and make decisions sooner.

Jonathan Chow, Principal Scientist, Corner Therapeutics

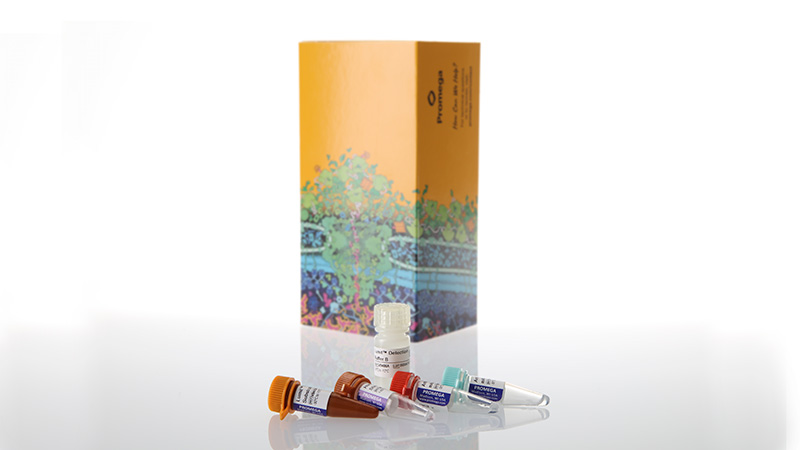

Specifications

You are viewing: W6040 Change Configuration

What's in the box?

Item Part # Size Concentration

Lumit® Detection Substrate B

VB405A 1 × 160μl

Lumit® Detection Buffer B

VB406A 1 × 3.2ml

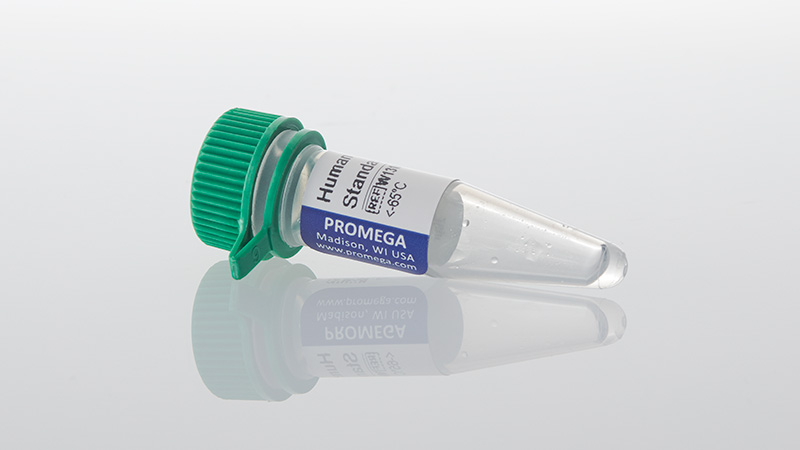

Human IFN-γ Standard

W134A 1 × 25μl 10μg/ml

Anti-hIFN-γ mAb-SmBiT, 500X

W135A 1 × 30μl

Anti-hIFN-γ mAb-LgBiT, 500X

W136A 1 × 30μl

Certificate of Analysis

Search by lot number

Use Restrictions

For Research Use Only. Not for Use in Diagnostic Procedures.

Storage Conditions

AA

Patents and Disclaimers

U.S. Pat. No. 8,809,529, European Pat. No. 2635582, Japanese Pat. No. 5889910 and other patents and patents pending.

U.S. Pat. Nos. 9,797,889, 9,797,890, 10,107,800 and 10,648,971 and other patents and patents pending.

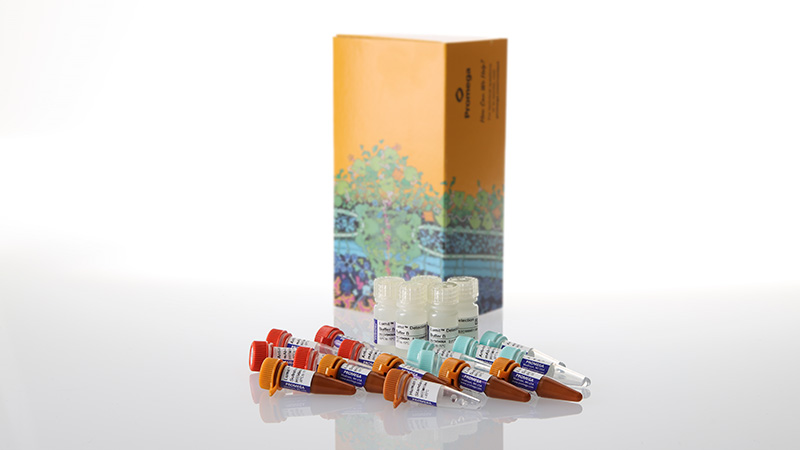

Specifications

You are viewing: W6042 Change Configuration

What's in the box?

Item Part # Size Concentration

Lumit® Detection Substrate B

VB405A 5 × 160μl

Lumit® Detection Buffer B

VB406A 5 × 3.2ml

Human IFN-γ Standard

W134A 1 × 25μl 10μg/ml

Anti-hIFN-γ mAb-SmBiT, 500X

W135A 5 × 30μl

Anti-hIFN-γ mAb-LgBiT, 500X

W136A 5 × 30μl

Certificate of Analysis

Search by lot number

Use Restrictions

For Research Use Only. Not for Use in Diagnostic Procedures.

Storage Conditions

AA

Patents and Disclaimers

U.S. Pat. No. 8,809,529, European Pat. No. 2635582, Japanese Pat. No. 5889910 and other patents and patents pending.

U.S. Pat. Nos. 9,797,889, 9,797,890, 10,107,800 and 10,648,971 and other patents and patents pending.

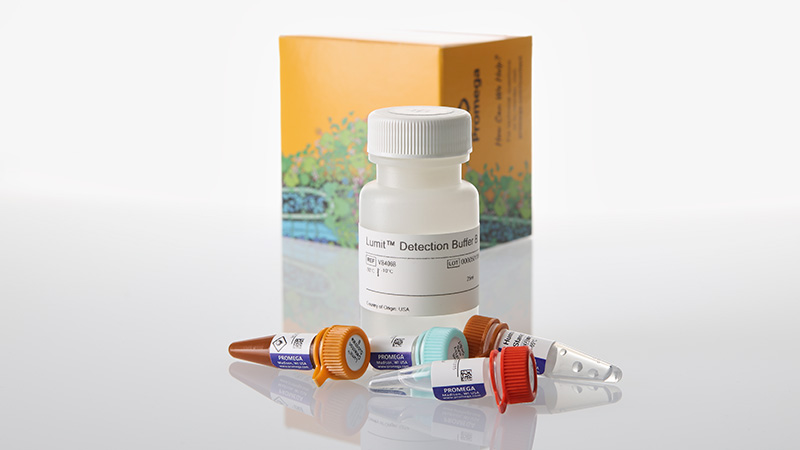

Specifications

You are viewing: W6041 Change Configuration

What's in the box?

Item Part # Size Concentration

Lumit® Detection Substrate B

VB405B 1 × 1.25ml

Lumit® Detection Buffer B

VB406B 1 × 25ml

Human IFN-γ Standard

W134A 1 × 25μl 10μg/ml

Anti-hIFN-γ mAb-SmBiT, 500X

W135B 1 × 300μl

Anti-hIFN-γ mAb-LgBiT, 500X

W136B 1 × 300μl

Certificate of Analysis

Search by lot number

Use Restrictions

For Research Use Only. Not for Use in Diagnostic Procedures.

Storage Conditions

AA

Patents and Disclaimers

U.S. Pat. No. 8,809,529, European Pat. No. 2635582, Japanese Pat. No. 5889910 and other patents and patents pending.

U.S. Pat. Nos. 9,797,889, 9,797,890, 10,107,800 and 10,648,971 and other patents and patents pending.
