Spectrum Compact CE System

An Affordable Benchtop Instrument for Sanger Sequencing and Fragment Analysis

  • Single-base resolution
  • Integrated touch screen operation
  • 6-dye-compatible CE analysis
  • Class 1 Laser Product

Choose a System

Catalog number selected: CE1304

Your price:
Please Enquire
This product is discontinued
Spectrum Compact CE System
1 each
Your price: Log in
Change Configuration

Benchtop, Personal CE System

The Spectrum Compact CE System is an integrated and efficient instrument that brings you the independence to perform Sanger sequencing and fragment analysis in your laboratory, under your control, and at your convenience.

It is designed for use with existing sequencing chemistries using fluorescently labeled dideoxynucleotide triphosphate and 4-, 5- and 6-dye STR kits from Promega and other commercially available kits.

Download Brochure

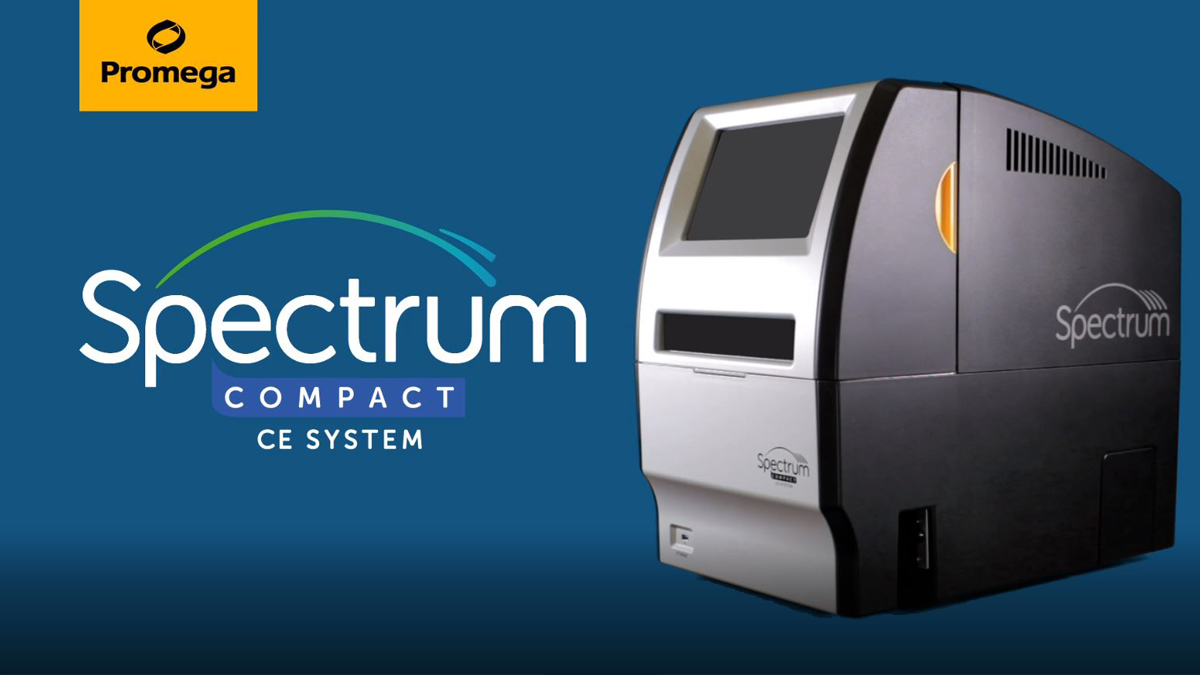

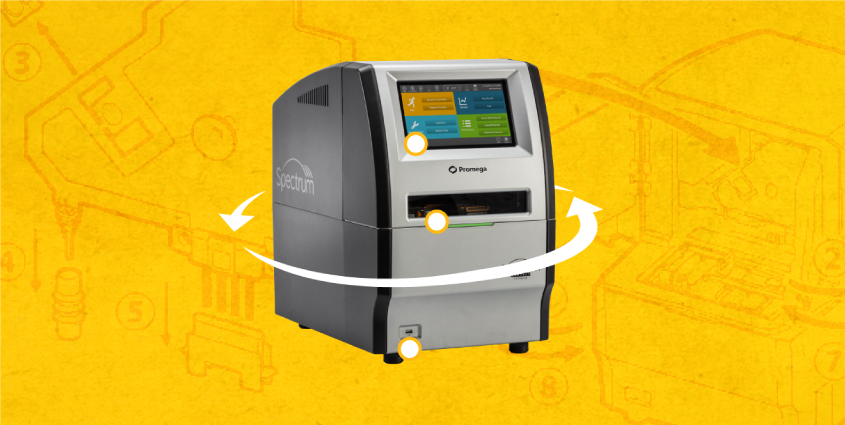

Spectrum Compact CE System Front View

One Compact System Optimized For a Broad Range of Applications

Sanger Sequencing

  • De novo sequencing
  • NGS confirmation
  • Resequencing
  • Mutation detection
  • Mitochondrial sequencing

Fragment Analysis

  • Microsatellites
  • PCR sizing
  • SNP genotyping
  • And many more...

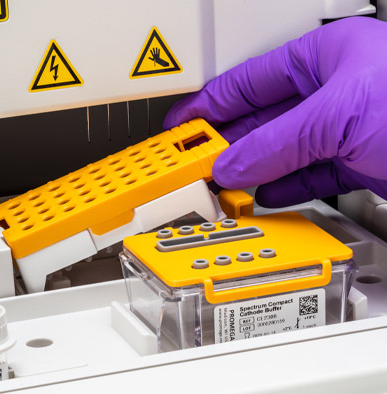

Inserting Cartridge into Instrument

Small-Footprint Advanced Multiplexing

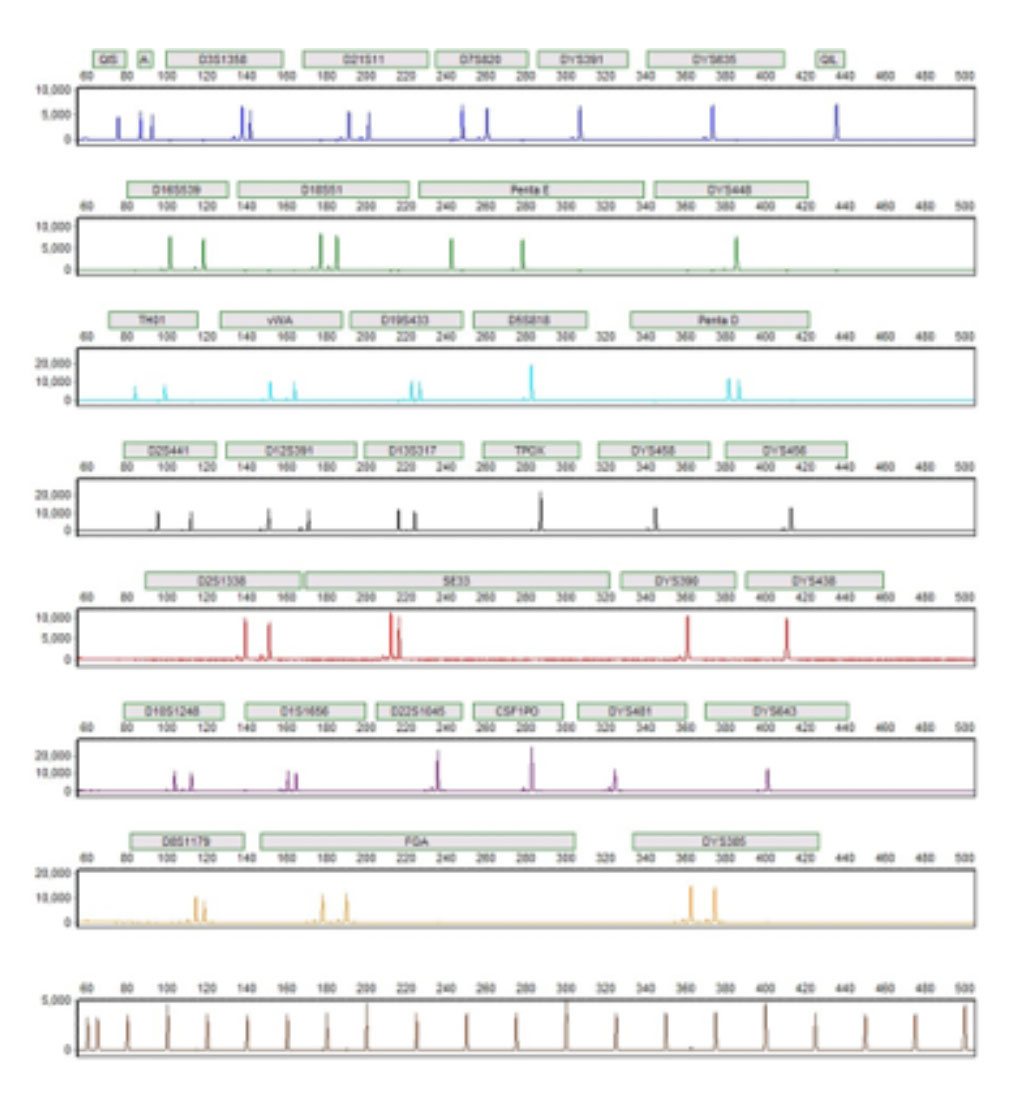

STR fragment analysis results using PowerPlex Fusion System and Spectrum Compact CE System

Electropherogram of 1ng of 2800M control DNA analyzed with PowerPlex® Fusion 6C System run on Spectrum Compact CE System. Injection was performed at 1.6kV for 9 seconds.

Single-Base Resolution

Spectrum Compact CE System achieves a 1bp resolution

Spectrum Compact CE System achieves a 1bp resolution, as can be seen in the D12S391 locus in the PowerPlex® ESI 17 Fast System Allelic Ladder. Injection was performed at 1.6kV for 9 seconds.

Accurate and Fast Sequencing

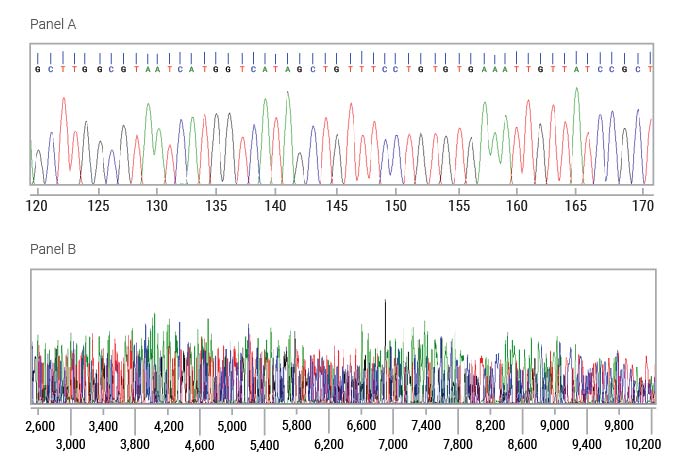

Accurate and Fast Sequencing Data

Representative portion of an electropherogram (Panel A) generated using the prototype ProDye™ Terminator Sequencing System on a Spectrum Compact CE System. Injection was performed at 1.2kV for 4 seconds with Polymer7; Panel B shows raw data of standard sequencing run.

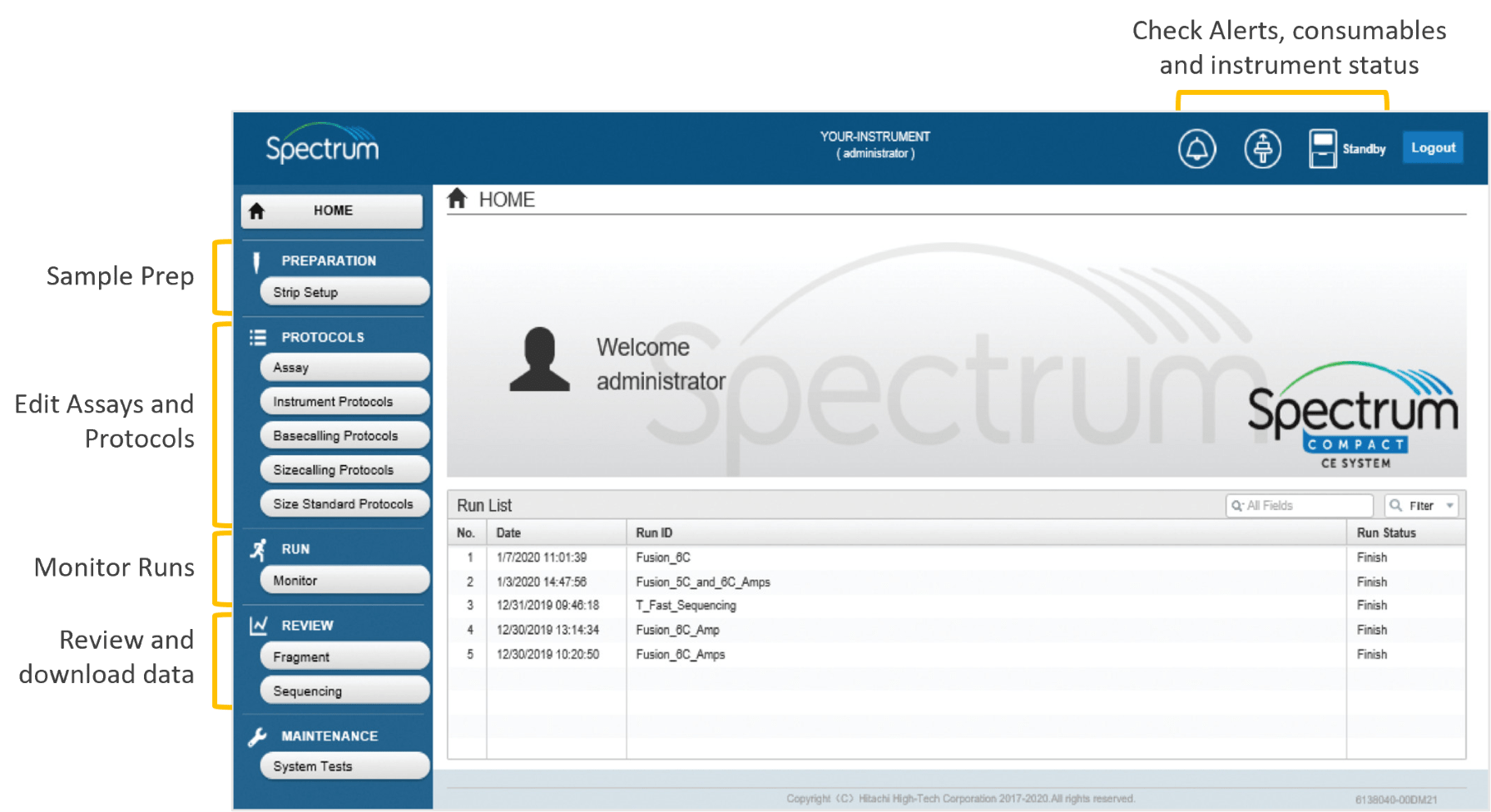

Integrated Touch Screen Operation

The Spectrum Compact Control Software provides a simple user interface with a clear display of useful features including run set up, consumables and array usage information, as well as system maintenance reminders. With the easy to use operational workflow instrument, the instrument also offers the ability to monitor run progress and view results while a run is in progress. Export files are compatible with commercially available data analysis software.

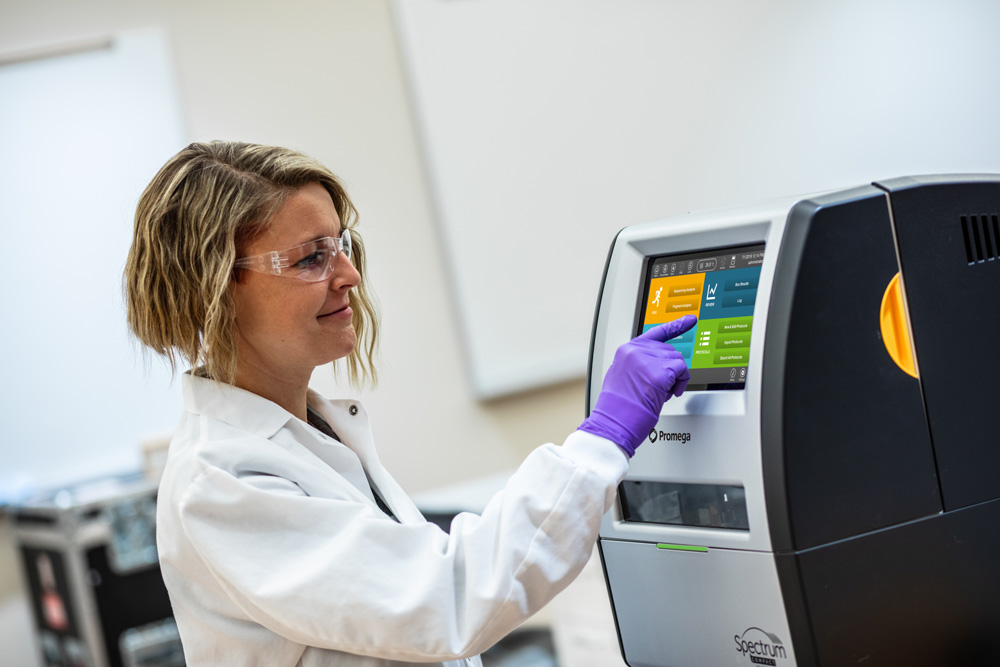

Spectrum Compact CE System touch screen operation

System Consumables and Components

Plug-and-play prefilled consumables with guided software user interface brings capillary electrophoresis capabilities to the hands of any researcher in the laboratory regardless of skill level or expertise.

Not only is the Spectrum Compact CE System simple to set up and operate, related consumables such as prefilled buffers and polymer are available in convenient packaging. Accessories such as plates, strip tubes and septa mats are also available for purchase. All consumables use 2D barcoding to track key information.

Spectrum Compact CE System consumables

Consumables Information

Cat. Number Description Size
CE2300 Spectrum Compact Buffer 2 pairs
CE2301 Spectrum Compact Cathode Septa Mat 10 each
CE2302 Spectrum Compact Cathode Retainer 4 each
CE2304 Spectrum Compact Polymer4 4 × 64 wells
CE2307 Spectrum Compact Polymer7 4 × 64 wells
CE2308 Strip Septa Mat, 8-Well 24 each
CE2332 Spectrum Compact Strip Base and Retainer, 32-Well 4 each
CE2340 Spectrum Compact Capillary Cartridge, 4-Capillary 36cm 1 each
CE2399 Capillary Preservation Buffer 10ml

Specifications

Number of capillaries 4
Capillary array length 36cm
Number of dye colors 6
Throughput Four 8-well strip tubes
Computer platform Integrated touch screen with built-in computer
Polymer Polymer4 and Polymer7
Data File Type .fsa for fragment analysis and .ab1 for Sanger sequencing
Dimensions 40cm W x 60cm D x 60cm H (15.75in W x 23.62in D x 23.62in H)
Weight 45kg (99lb)
Power Input 100–240VAC, 50/60Hz, 260VA

To learn more about operating and maintaining the instrument, check out our tutorial videos.

Explore Tutorials

GeneMarker®HID Software for Spectrum CE Systems

GeneMarker®HID Software for Spectrum CE System (GMHID-Spectrum) supports data analysis with all commercially available human identity kits. A range of reporting options are available to meet LIMS and report printing needs, and analysis and display options can be easily configured to support your laboratory's workflow. Other benefits include:

  • Database searching and relationship testing modules
  • Review tools, such as automated contamination checking and project comparison
  • Time savings of at least 25%
  • Less analyst intervention
  • Supports Spectrum (.promega) and existing CE data (.fsa and .hid files)

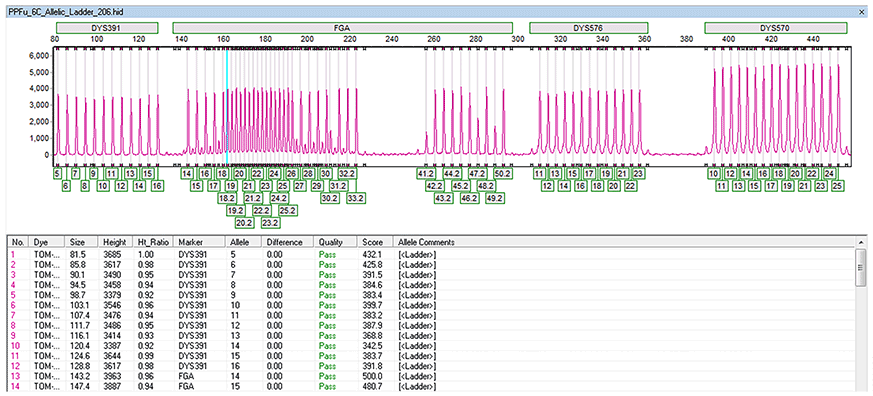

GMHID Software Linked Navigation

Linked Navigation: Simply click on a peak or in the table to highlight data details.

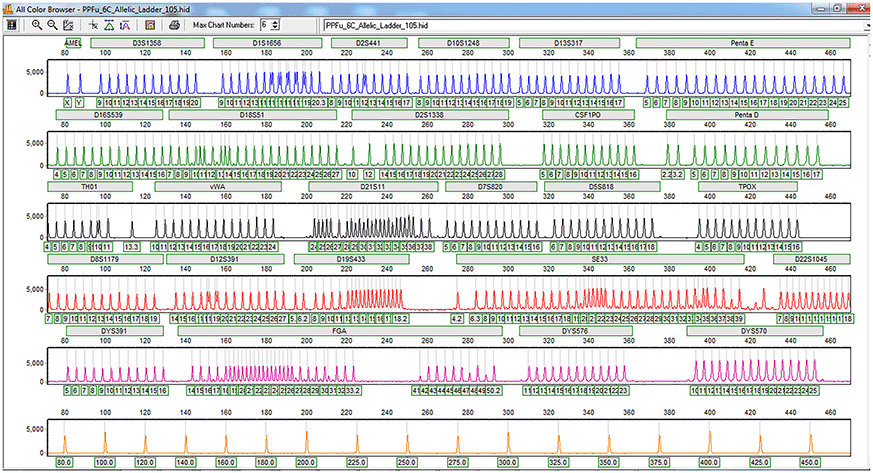

GMHID Software Multi-Color View

Multi-Color View: View/comment/edit all dye channels for an allelic ladder or sample on one screen.

ProView™ Sequencing Software

ProView™ Sequencing Software is a customizable Sanger sequencing viewer capable of displaying .ab1 files generated on many currently available capillary electrophoresis (CE) sequencers. This software can be used to view and edit sequence information, display electropherograms, generate reports, display embedded information and save edited files in multiple formats.

ProView Sequencing Software Sample Output

Service and Support

We understand that your work can’t stop, and we’re dedicated to minimizing any interruptions to your lab operations. On-site installation and operational training are included with purchase of the instrument, and preventive maintenance, applications training, validation and on-site service are also available. Promega scientists are ready to help, and we expect to be there when you need us.

Service

Phone-based and on-site consultation in addition to data analyses and summary reports are the kinds of options for support you can expect.

Installation

As you transition to include the Spectrum Compact CE System in your lab, we will be with you every step of the way. We offer on-site instrument, software and application training as well as timely on-site installation and service.

Maintenance

If you want regular servicing and maintenance, we can take care of you. In addition to standard maintenance contracts, we have additional packages to keep your Spectrum Compact CE System running.

Specifications

You are viewing: CE1304 Change Configuration

SDS

Choose language:

Certificate of Analysis

Search by lot number

Use Restrictions

Not For Medical Diagnostic Use.

Specifications

You are viewing: CE1307 Change Configuration

What's in the box?

Item Part # Size

Spectrum Compact Buffer

CE2300 1 × 2 pairs

Spectrum Compact Cathode Septa Mat

CE2301 1 × 10 each

Spectrum Compact Cathode Retainer

CE2302 1 × 4 each

Spectrum Compact Polymer4

CE2304 1 × 4 × 64 wells

Spectrum Compact Polymer7

CE2307 1 × 4 × 64 wells

Strip Septa Mat, 8-Well

CE2308 1 × 24 each

Spectrum Compact Strip Base & Retainer, 32-Well

CE2332 1 × 4 each

Spectrum Compact Capillary Cartridge, 4-Capillary 36cm

CE2340 1 × 1 each

Capillary Preservation Buffer

CE2399 1 × 10ml

Barcode Scanner

CE5300 1 × 1 each

SDS

Choose language:

Certificate of Analysis

Search by lot number

Use Restrictions

Not For Medical Diagnostic Use.

Specifications

You are viewing: CE1305 Change Configuration

What's in the box?

Item Part # Size

Spectrum Compact Buffer

CE2300 1 × 2 pairs

Spectrum Compact Cathode Septa Mat

CE2301 1 × 10 each

Spectrum Compact Cathode Retainer

CE2302 1 × 4 each

Spectrum Compact Polymer4

CE2304 1 × 4 × 64 wells

Spectrum Compact Polymer7

CE2307 1 × 4 × 64 wells

Strip Septa Mat, 8-Well

CE2308 1 × 24 each

Spectrum Compact Strip Base & Retainer, 32-Well

CE2332 1 × 4 each

Spectrum Compact Capillary Cartridge, 4-Capillary 36cm

CE2340 1 × 1 each

Capillary Preservation Buffer

CE2399 1 × 10ml

Barcode Scanner

CE5300 1 × 1 each

SDS

Choose language:

Certificate of Analysis

Search by lot number

Use Restrictions

Not For Medical Diagnostic Use.
