OncoMate® 5C Matrix Standard
- 5C Matrix Standard labeled with fluorescein, JOE, TMR-ET, CXR-ET and WEN
- Calibration Standard for use with the OncoMate® MSI Dx Analysis System
- IVD Medical Device
- CE-Marked and available in select European countries; FDA-cleared in the United States
Catalog Number:
Size
Catalog Number: MD4850
The OncoMate® 5C Matrix Standard consists of DNA fragments labeled with five different fluorescent dyes (fluorescein, JOE, TMR-ET, CXR-ET and WEN) in one tube. OncoMate® 5C Matrix Standard is used to calibrate the Applied Biosystems® 3500 Dx Genetic Analyzer prior to running the OncoMate® MSI Dx Analysis System to distinguish fluorescent signals from the specific dyes used in the assay.
Intended Use statement: The OncoMate® 5C Matrix Standard is used for spectral calibration of the Applied Biosystems® 3500 Dx Genetic Analyzer configured with a 50cm 3500 Dx Capillary Array and POP-7® 3500 Dx Series polymer. The spectral calibration procedure generates a multicomponent matrix that is applied during the subsequent analysis of amplification products from the OncoMate® MSI Dx Analysis System.
Representative Data
Protocols
Complete Protocol
Specifications
Catalog Number:

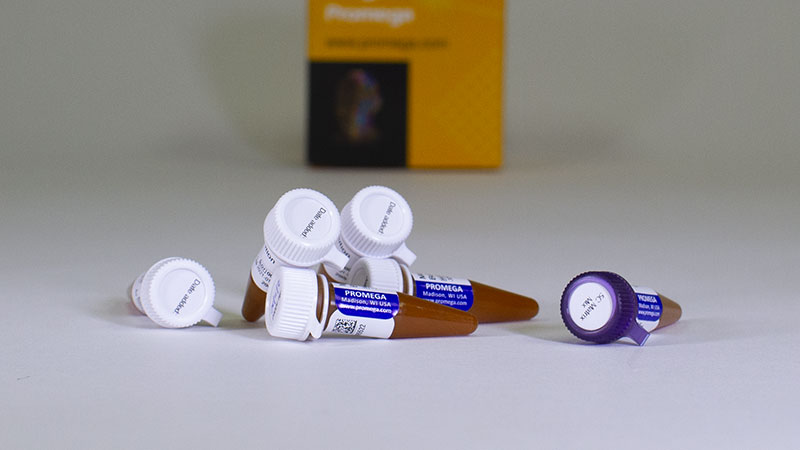

What's in the box?
| Item | Part # | Size |
|---|---|---|
Matrix Dilution Buffer |
MD191A | 5 × 200μl |
5C Matrix Mix |
MD430A | 1 × 150μl |
SDS
Search for SDSCertificate of Analysis
Use Restrictions
For In Vitro Diagnostic Use. This product is only available in certain countries.Storage Conditions
U.S. Pat. No. 9,139,868, European Pat. No. 2972229, Japanese Pat. No. 6367307 and other patents pending.
TMR-ET, CXR-ET and WEN dyes are proprietary.
