PNGase F

Recombinant Glycosidase Cloned from Elizabethkingia miricola

  • Use to determine protein glycosylation status and location
  • Cleaves N-linked oligosaccharides between innermost GlcNAc and asparagines from N-linked glycoproteins
  • Will not remove oligosaccharides found on plant glycoproteins
  • Supplied at a concentration of 10u/μl

Size

Catalog number selected: V4831

$ 156.00
Your price:
Add to Cart
This product is discontinued
Add to Helix
PNGase F
500 units
$ 156.00
Your price: Log in

PNGase F, Recombinant Glycosidase

PNGase F is a recombinant glycosidase cloned from Elizabethkingia miricola and overexpressed in E. coli. PNGase F has a molecular weight of 36kDa. PNGase F catalyzes the cleavage of N-linked oligosaccharides between the innermost GlcNAc and asparagine residues of high mannose, hybrid and complex oligosaccharides from N-linked glycoproteins (see figure). PNGase F will not remove oligosaccharides containing Alpha-(1,3)-linked core fucose commonly found on plant glycoproteins.

Unit Definition: One unit of PNGase F will catalyze the deglycosylation of 1 nanomole of denatured Ribonuclease B (RNase B) in one minute at 37°C. One Promega unit is equal to 1 IUB milliunit.

Molecular Weight: PNGase F has a molecular weight of approximately 36kDa.

Physical Form: PNGase F is supplied as a liquid in 20mM Tris-HCl (pH 7.5 at 25°C), 50mM NaCl and 5mM EDTA at a concentration of 10,000u/ml.

Applications
  • Characterizing whether the protein is glycosylated
  • Determining the location of glycosylation on the protein
  • Characterizing the glycan structure
  • Protein trafficking

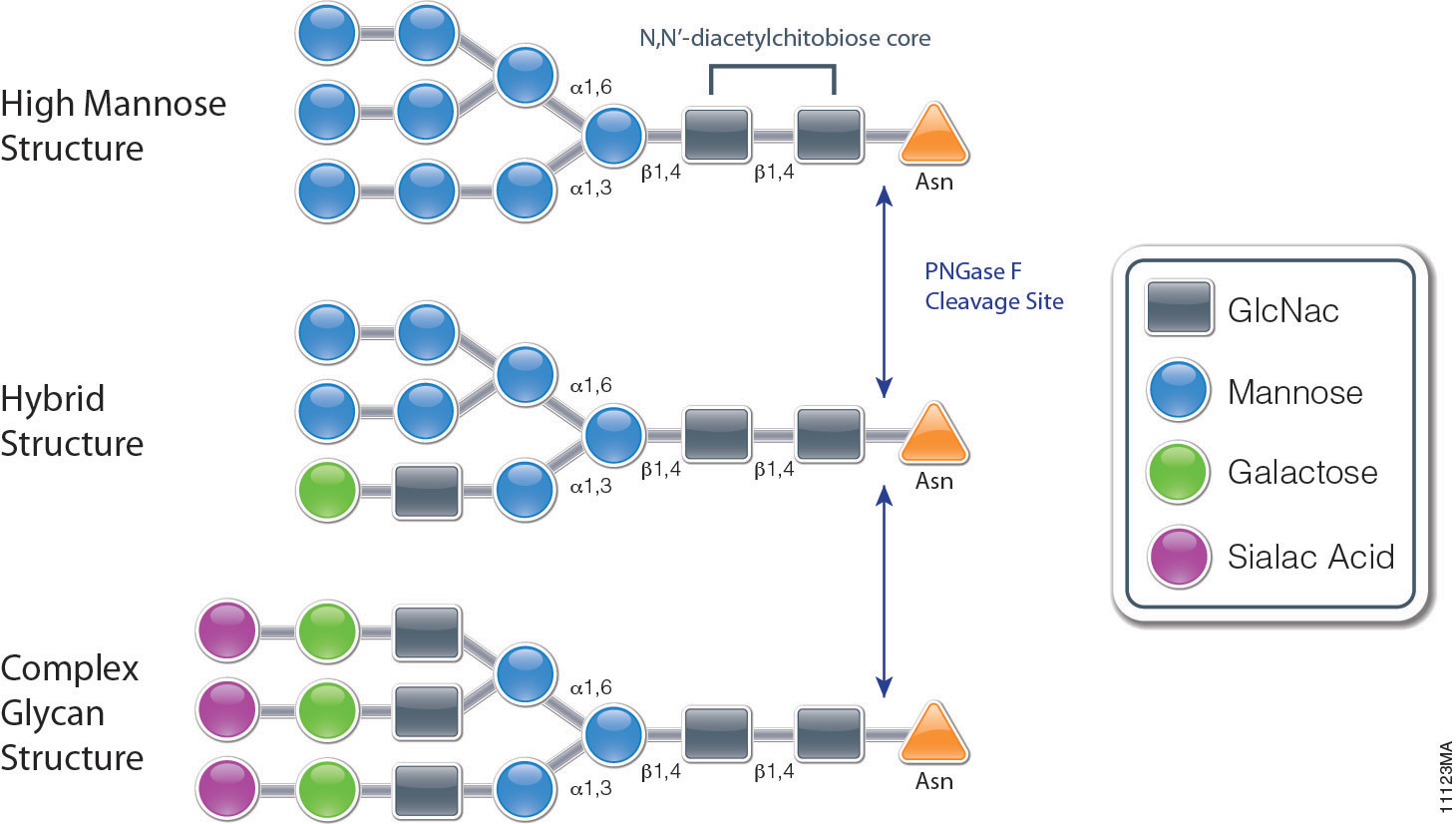

Cleavage specificity of PNGase F on N-Glycans.

Cleavage specificity of PNGase F on N-Glycans.
Cleavage specificity of PNGase F on N-Glycans.

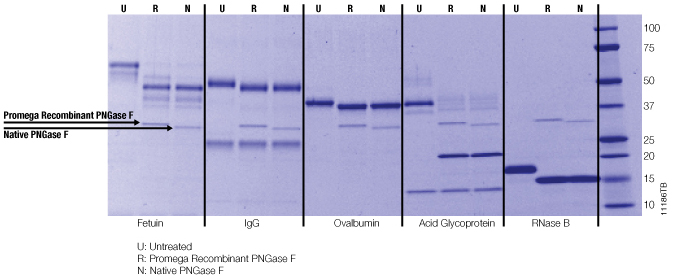

Recombinant PNGase F deglycosylates multiple substrates.

Recombinant PNGase F deglycosylates multiple substrates.
Recombinant PNGase F deglycosylates multiple substrates.

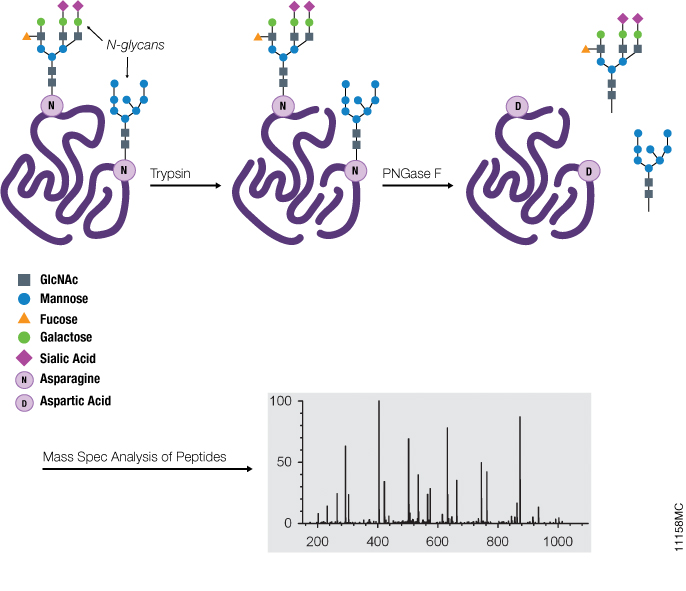

Schematic illustrating the use of PNGase F and mass spec analysis of N-glycosylation.

Schematic illustrating the use of PNGase F and mass spec analysis of N-glycosylation.
Schematic illustrating the use of PNGase F and mass spec analysis of N-glycosylation.

Protocols

Specifications

What's in the box?

Item Part # SizeConcentration

PNGase F

V483A 1 × 500 units10u/μl

SDS

Choose language:

Download SDSPDF (41 KB) – English (United States)

Certificate of Analysis

See all certificates for V4831

Use Restrictions

For Research Use Only. Not for Use in Diagnostic Procedures.

Storage Conditions
