GloMax® 20/20 Luminometer Accessories

GloMax® 20/20 Light Standard

The GloMax®-20/20 Luminometer Light Standard, Cat #E5341, provides a quick and easy way to verify the performance of the GloMax®-20/20 Luminometer. It allows the user to check the reproducibility, sensitivity, and linearity of the luminometer. It can be used for both short and long term stability check of the detection system.

Operating Instructions

Using the Light Standard on the GloMax®-20/20 Luminometer is very simple. First, turn OFF the GloMax®-20/20 Luminometer. Second, insert the Light Standard into the sample compartment. Third, turn ON the GloMax®-20/20 Luminometer. It will automatically detect your standard. The Light Standard will report the status of the instrument in less than 30 seconds.

Specifications

Dimensions: 2 1/2" × 1 5/8" × 1 3/8"
Weight: 4.7 oz
Spectral range of light emission: 565±10 nm

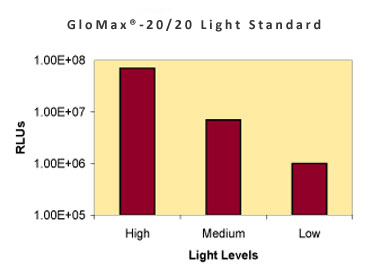

Light levels: 5 × 10⁷– 8 × 10⁷, Medium 5 × 10⁶– 8 × 10⁶, Low  8 × 10⁵ –1.4 × 10⁶
Operating temperature: 20–35°C
Storage temperature: 10–40°C
Humidity: 5–75%

GloMax® 20/20 Fluorescent Modules

The GloMax®-20/20 Fluorescent Modules enable measurement and analysis of common fluorophores. Two "plug-and-play" modules are available for different excitation and emission wavelengths:

Cat.# E5361: Blue: 460 nm EX, 515–575 nm EM
Cat.# E5351: UV: 365–395 nm EX, 440–470 nm EM

Features of the GloMax® 20/20 Fluorescent Module

• Snaps into the instrument sample compartment.
• Easy to use.
• UV and Blue configurations.
• Data exports directly to Excel.
• Simple calibration.

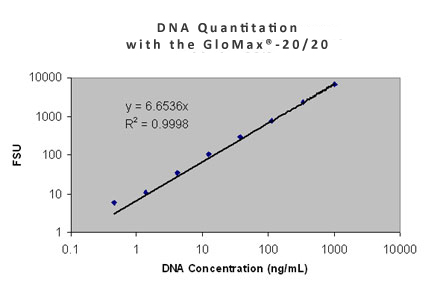

The Blue Fluorescent Module enables the GloMax®-20/20 to accurately measure common fluorophores including DNA Quantitation Dyes, RNA Quantitation Dyes and fluorescein. The Blue Fluorescent Module measures dsDNA from 450 pg/mL to 1 µg/mL using DNA Quantitation Dye.

The UV Fluorescent Module enables the GloMax®-20/20 to accurately measure common fluorophores including Hoescht Dye 32258 and 4-MU. With a wide dynamic range, the UV Fluorescent Module measures dsDNA from 10 ng/mL to 1 µg/mL using Hoescht Dye 32258. The unique detection system allows measurement of very bright samples without detector saturation.

Measure raw fluorescence of samples or obtain precise concentration measurements with a simple calibration. Measurements are taken quickly over a 5-second integration period. Low measurement volumes (100-200 µL) conserve precious samples and expensive reagents.

Specifications

Dynamic Range: 5 decades
Dimensions: 2 1/2" × 1 5/8" × 1 3/8"
Weight: 4.7 oz
Sample Compartment: Holds minimum of 100 µL and 200 µL maximum volume minicell cuvettes (P/N 7000-950)
Wavelengths: UV: Excitation: 365–395 nm; Emission: 440–470 nm; BLUE: Excitation: 460 nm; Emission: 515–575 nm
Operating Temperature: 20–35°C
Storage Temperature: 10–40°C
