Wizard® HMW DNA Extraction Kit

Click here to customize this product
Click here to customize this product

Purify High-Molecular-Weight DNA for Long-Read Sequencing

  • Optimized protocol for extracting high-purity HMW DNA
  • Reliable performance on long-read systems such as the Oxford Nanopore Technologies® instruments
  • Rapid protocol with no hazardous chemicals


Catalog number selected: A2920

$ 330.00
Your price:
Add to Cart
This product is discontinued
Add to Helix
This product is available under our Early Access program - Learn More
This product is available under our Catalog (FT) program - Learn More
Wizard® HMW DNA Extraction Kit
50 preps
$ 330.00
Your price: Log in

High-Quality High-Molecular-Weight DNA from a Variety of Sample Types

De novo genome sequencing, genome finishing and structural variant detection have become significantly more commonplace due to advances in sequencing technology. Long-read sequencing in particular provides researchers with data to address challenges in fields such as oncology, inherited disease research, microbiology and agriculture. However, long-read technologies require high-quality, high-molecular-weight DNA. Obtaining DNA of sufficient, size, quantity and quality is critical to the process that has historically required costly or laborious methods.

The Wizard® HMW DNA Extraction Kit is specifically designed to isolate high-molecular-weight (HMW) DNA that will provide strong performance in long-read sequencing. This kit helps researchers obtain DNA up to 500kb with high purity to get the most out of precious samples and can be used with a wide range of sample types, including whole blood, plant leaf, tissue culture cells and Gram-positive and Gram-negative bacteria. With a workflow that can be completed in approximately 1.5 hours without specialized equipment, the Wizard® HMW DNA Extraction Kit relieves many of the challenges regularly faced by researchers.

HMW DNA in Long-Read Sequencing

Samples of human blood and cultured K562 mammalian cells were used to extract high-molecular-weight DNA using the Wizard® HMW DNA Extraction Kit. These samples were prepped for sequencing using the recommended ligation-based library preparation method, and sequenced using an Oxford Nanopore Technologies® MinION® instrument.

K562 Cultured Cells Whole Human Blood
Longest Read 422,150bp 434,461bp
N50 47,278bp 54,882bp
Percent Reads >100kb 1.3% 2.4%

Sequencing run summary data comparing the extraction methods is shown above. Numerous measures indicate that the Wizard® HMW chemistry extracts large DNA fragments with excellent performance in sequencing. The N50 metric quantitates the read length above which half of the data is derived and the number of reads larger than 100kb benefits researchers who are tackling large structural variants or large gaps in genome assemblies.

HMW DNA Yield, Purity and Size Analysis

Assessing the quality of HMW DNA is critical to both judging the success of extractions as well as to predicting success in sequencing runs. Traditional tools for measuring high-molecular-weight DNA purity and yield are often sufficient. However, additional steps to assess fragment size can better predict long-read sequencing performance.

Yield and Purity

Sample Input Average Yield (µg) Average Purity (A260/A230) Average Purity (A260/A280)
Blood 300µl 12.5 2.2 1.8
E. coli 300µl overnight culture 27.3 2.1 1.9
L. innocua 300µl overnight culture 13.5 1.9 2.0
K562 1 × 106 cells 11.9 2.1 1.9
Holly 40mg leaf tissue 3.4 2.1 2.2
Spinach 40mg leaf tissue 1.7 2.2 2.1

DNA was extracted from several sample types using the Wizard® HMW DNA Extraction Kit protocol specific to each sample type. The extracted DNA was found to be highly pure, which is a basic indicator of success in downstream applications. Yields were measured using the fluorescent dye-based QuantiFluor® dsDNA System. The yields and purities obtained are more than sufficient to meet the needs of common long-read sequencing applications.

Gel Analysis

PFGE analysis of HMW DNA from blood, plant and bacteria
Pulsed-field gel electrophoresis analysis of purified DNA from six sample types using the Wizard® HMW DNA Extraction Kit. Lane M = ProMega-Markers® Lambda Ladders (Cat.# G3011).

DNA extracted from several unique samples was analyzed by pulsed-field gel electrophoresis (PFGE) to approximate the size distribution of high-molecular-weight fragments. All sample types yielded HMW DNA, which is commonly defined as being 50kb or larger. Of note, there were fragments up to 500kb for some samples.

Quantitative Fragment Analysis

Sample Percent DNA >50kb (GQN 50kb) Percent DNA >100kb (GQN 100kb) Percent DNA >150kb (GQN 150kb)
Blood 92% 81% 48%
E. coli (Gram negative) 91% 83% 61%
L. innocua (Gram positive) 65% 52% 28%
K562 86% 75% 63%
Holly 62% 45% 18%
Spinach 64% 48% 22%

The size distribution of fragments in HMW DNA samples were quantitated using the Agilent Femto Pulse System. This system produces data produced that can be viewed as a traditional electropherogram, or reported using the GQN (genomic quality number) metric. The GQN can be reported at any given fragment size and indicates the percentage of fragments that are of a designated size or larger. Using this approach, samples extracted using the Wizard® HMW DNA kit were analyzed, and the results reported in the table above. The data indicate that for even challenging sample types, most purified DNA is over 50kb, and in many cases, the majority of extracted DNA is over 100kb.

High Molecular Weight DNA Extraction Application Notes

The Protocol for the Wizard® HMW DNA Extraction Kit contains recommended protocols for specific sample types. We continue to test additional samples and publish the results as short Application Notes containing example protocols and data.

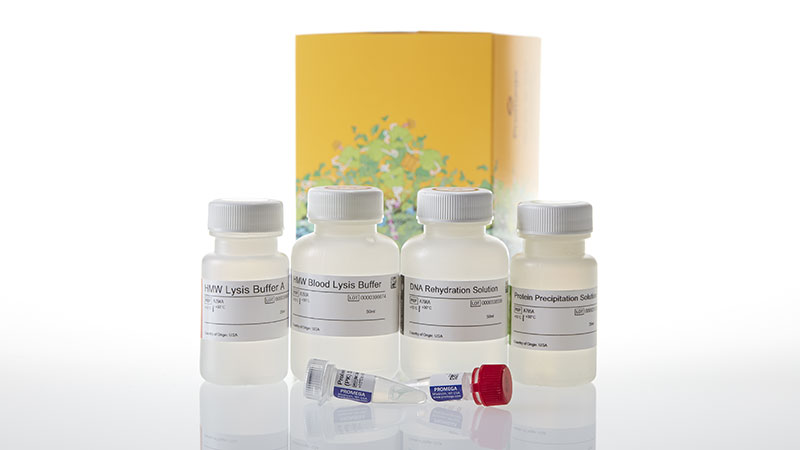

What's in the box?

Item Part # Size Available Separately

HMW Blood Lysis Buffer

A293A 1 × 50ml

HMW Lysis Buffer A

A294A 1 × 25ml

Protein Precipitation Solution

A795A 1 × 25ml View Product

DNA Rehydration Solution

A796A 1 × 50ml View Product

RNase A Solution

A797A 1 × 250μl View Product

Proteinase K (PK) Solution

MC500C 1 × 1ml View Product

Certificate of Analysis

Search by lot number

Use Restrictions

For Research Use Only. Not for Use in Diagnostic Procedures.

Storage Conditions
