Lentivirus Tools

Lentiviruses are a type of retrovirus that can infect both dividing and non-dividing cells, making them an attractive vector for gene therapy applications. Using lentiviral vectors, therapeutic genes can be delivered into patient cells in order to stably replace, modify or supplement defective or missing genes from a patient's genome. Lentiviral vectors are also commonly used to deliver and express chimeric antigen receptor (CAR) in T cells and other immune cells.

Our lentiviral vector product offerings include a novel p24 immunoassay, in-process potency testing tools for T cell redirecting lentivirus and a broad portfolio of genomics solutions for lentivirus characterization and analysis.

Start a Conversation

Lumit® p24 Immunoassay

In a gene therapy workflow, reproducible detection of the p24 protein on lentivirus capsids is an essential measurement in determining lentiviral titer. Using our Lumit® technology, we have developed an easy-to-use immunoassay that provides rapid detection of the p24 protein.

The Lumit® p24 Immunoassay offers a simple, no-wash protocol, broad dynamic range and can be completed in as little as 30 minutes, making it a compelling alternative to conventional labor-intensive immunoassays such as ELISAs.

Contact us for more information on custom Lumit® antibody labeling or assay development.

18516ta-a
18516ta-b
Lumit® p24 Immunoassay Detection Data

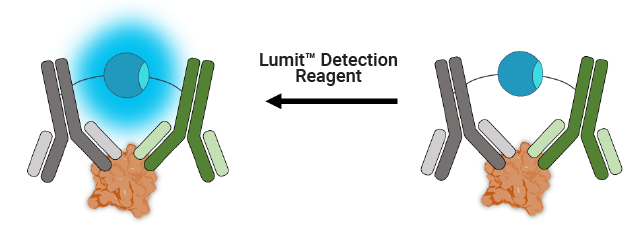

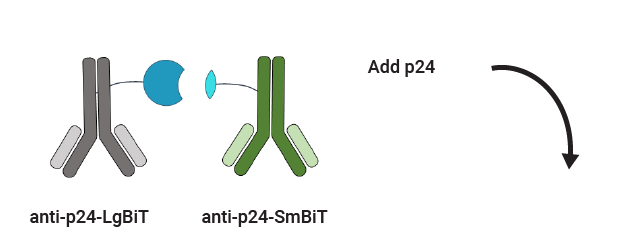

Lumit™ p24 Immunoassay Workflow

18523ta
18528ca

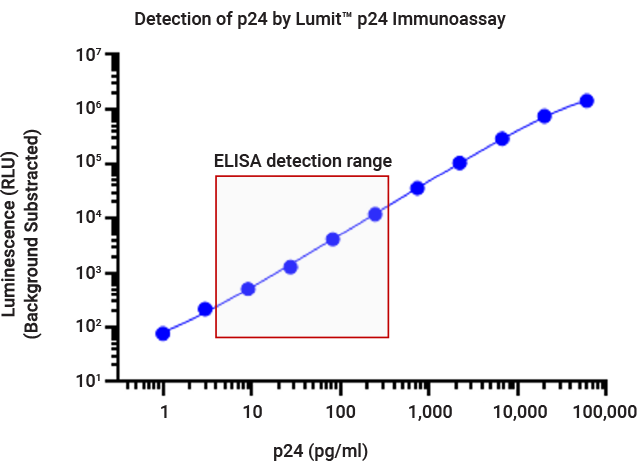

The Lumit® p24 Immunoassay demonstrates a broad linear dynamic range of 2–60,000pg/ml, far exceeding the detection range of commercially available ELISA kits.

Interested in the Lumit® p24 Immunoassay?

Contact Us

In-Process Potency Testing of T Cell Redirecting Lenti-CAR Virus

For lentivirus vectors used in CAR-T manufacturing, guidance from regulatory authorities recommends additional measures of potency beyond transgene expression of the viral vector in CAR-T cells.

To address this need, we developed a MoA-based potency assay to measure CAR:target cell engagement for T cell redirecting lentiviral vectors. The bioassay provides a stability indicating, quantitative luminescent readout that is readily implemented as part of your CAR-T workflow.

18517ma


Assay principle. CAR is expressed on the surface of TCR/CD3 Effector Cells containing an NFAT-Luciferase reporter. When the CAR is engaged by an antigen on a target cell, luminescence is induced in proportion to the signaling.
18485ta

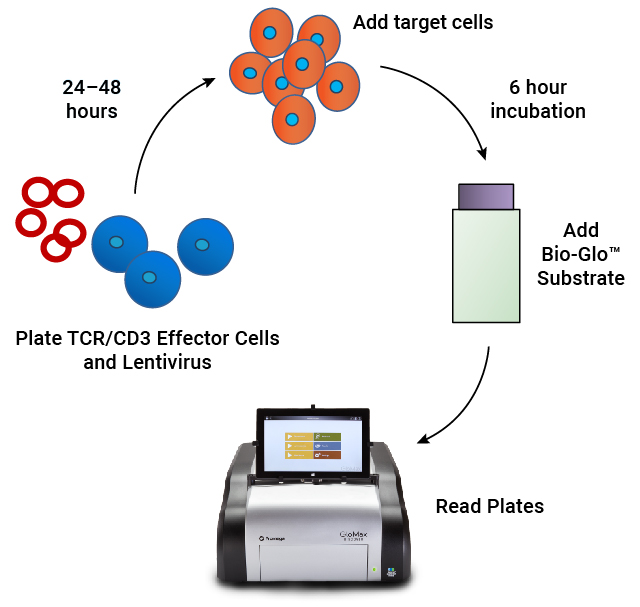

Assay workflow. TCR/CD3 Effector Cells are combined with CAR lentivirus in 96-well plates. After 24–48 hours of incubation, antigen-expressing target cells are added. Following a 6-hour induction period, Bio-Glo™ Substrate is added and luminescence is quantified.

Lentivirus Bioassay Specificity Data
Lentivirus Bioassay Stability Data
Lentivirus Bioassay is Specific
18492ma


Specificity of response for CAR-19 lentivirus transduced cells. TCR/CD3 Effector Cells were transduced with serial dilutions of CAR-19 or GFP lentivirus. 48 hours later, Raji target cells (CD19+) were added and luminescence was detected after a 6-hour induction period. Only the TCR/CD3 Effector Cells transduced with CAR-19 lentivirus showed a response to the Raji target cells.

18493ma


Antigen knockout demonstrates assay specificity. TCR/CD3 Effector Cells were transduced with serial dilutions of CAR-19 lentivirus. 48 hours later, Raji target cells or CD19-knockout Raji target cells were added and luminescence was detected after a 6-hour induction period. The response to target cells was eliminated by antigen knockout, demonstrating the specificity of the assay.

Lentivirus Bioassay is Stability Indicating

18486ta


Heat Treatment
Time (hours)
EC50
 % Inhibition of Max
 0
  0.81        Reference
 2
 1.0

 26%

 6
 2.4
 18%
 24  2.5
 47%
 48  5.0
 67%


Forced degradation samples of CAR-19 lentivirus were prepared by incubating at 37°C for 2–48 hours, then analyzed using TCR/CD3 Effector Cells and Raji Target Cells. The assay demonstrates a loss of lentiviral potency with heat treatment, as measured by an increase in EC50 and a decrease in the maximum response.

Automated RNA or DNA Extraction for Lentiviral Vector Characterization

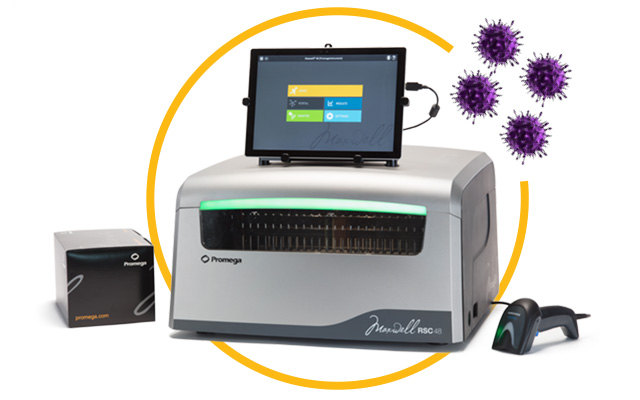

The Maxwell RSC® Instrument is magnetic particle mover that uses prefilled cartridges and pre-programmed methods to extract DNA and/or RNA from a wide variety of sample types in 25–60 minutes.

We also have high-throughput extraction chemistries and manual extraction solutions for RNA and DNA if you are working on a smaller scale.


18522ca

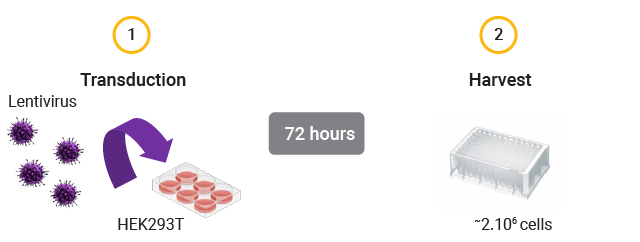

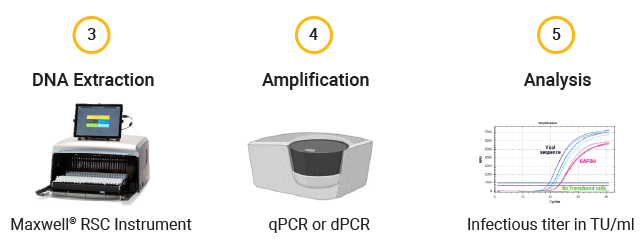

Workflow of gDNA Extraction for Infectious Titer Determination After Cell Transduction

18519ta-a
18519ta-b
Created with BioRender.com

Workflow of RNA Extraction for Copy Number Determination of Produced Lentiviral Vector Batches

18520ta-a
18520ta-b
Created with BioRender.com
gDNA Extraction for Infectious Titer Determination Data
RNA Extraction for Copy Number Determination Data
18525ta

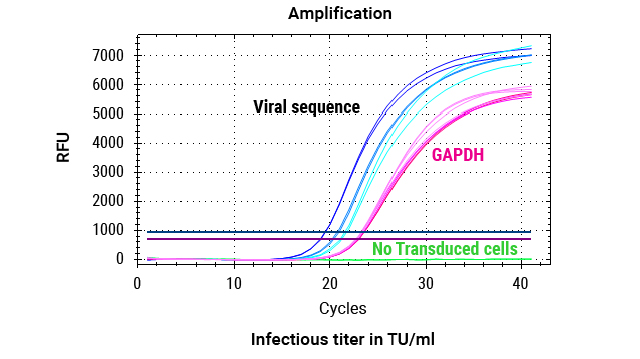

DNA was extracted from 2 million cells transduced with 3 dilutions (1:5, 1:10, 1:20) of lentiviral vectors, as well as from cells that were not transduced (no LV). The custom Promega One4All kit extracted high-quality gDNA with absorbance ratios higher than 2, and both the DNA quality and yields meet requirements for analysis.

18526ta
18527ta

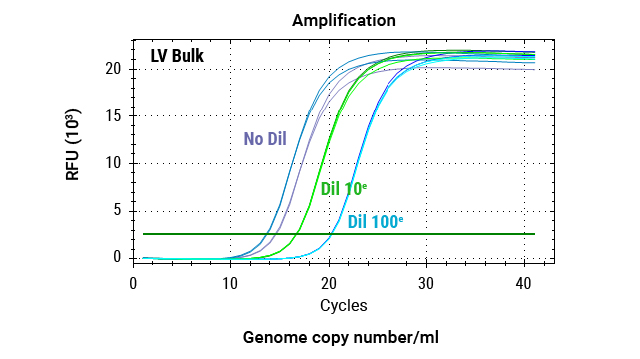

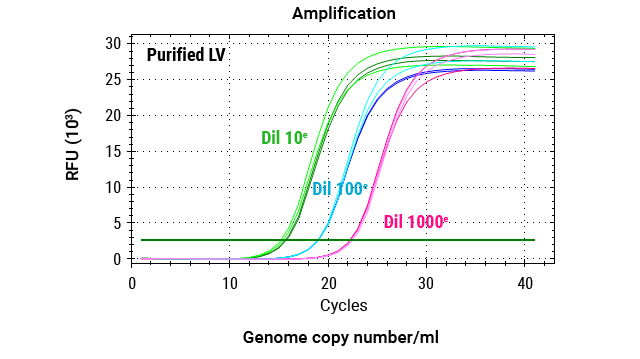

Lentiviral copy numbers (mean) show good correlation with dilution factors. Highly loaded samples (bulk undiluted and purified 1:10 dilution) exhibit higher variability, probably due to excess starting material. For routine analysis, RNA extraction and viral genome titer will be performed using a 1:100 dilution of purified lentiviruses. Duplicate RNA extractions were performed for each condition.
