DNA Fragments Labeled with Fluorescent Dyes for Use with PowerPlex® Systems

  • 8C Matrix Standards are labeled with: FL-8C, JOE-8C, AQA-8C, TMR-8C, CXR-8C,TOM-8C, WEN-8C and CCO-8C
  • 6C Matrix Standards are labeled with: FL-6C, JOE-6C, TMR-6C, CXR-6C, TOM-6C and WEN
  • 5C Matrix Standards are labeled with: Fluorescein, JOE, TMR-ET, CXR-ET and WEN
  • 4C Matrix Standards are labeled with: Fluorescein, JOE, TMR and CXR

Choose a product

Size

Catalog number selected: DG4800

$ 169.00
Your price:
Add to Cart
This product is discontinued
Add to Helix
This product is available under our Early Access program - Learn More
This product is available under our Catalog (FT) program - Learn More
PowerPlex® Matrix Standards
4C Matrix Standard/5 preps
$ 169.00
Your price: Acceder
Cambiar Configuración

Use of Matrix Standards

Proper generation of a spectral calibration file is critical to evaluate multicolor systems. Once generated, the spectral calibration file is applied during sample detection to calculate and compensate for spectral overlap between different fluorescent dye colors.

PowerPlex® 8C Matrix Standards

The PowerPlex® 8C Matrix Standard (Cat.# DG5010) allows the PowerPlex® 35GY and PowerPlex® 18E Systems to be analyzed on the Spectrum and Spectrum Compact CE Systems.

The PowerPlex® 8C Matrix Standard consists of DNA fragments labeled with eight different fluorescent dyes in one tube: FL-8C, JOE-8C, AQA-8C, TMR-8C, CXR-8C,TOM-8C, WEN-8C and CCO-8C.

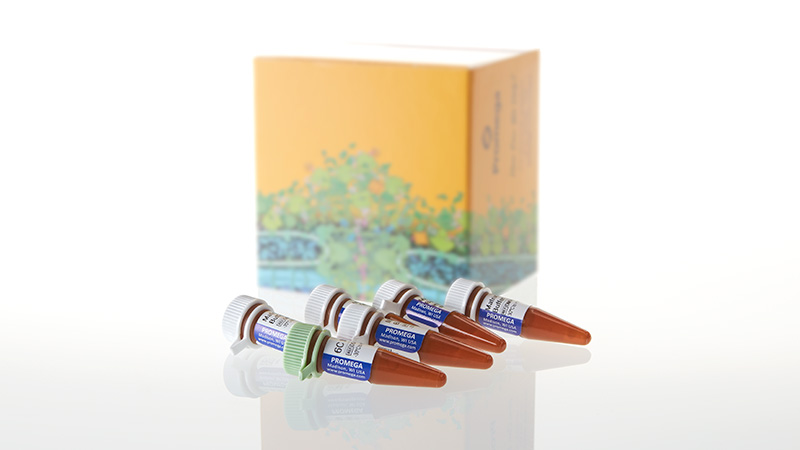

PowerPlex® 6C Matrix Standards

The PowerPlex® 6C Matrix Standard (Cat.# DG4900) allows the PowerPlex® Fusion 6C System to be analyzed on the Spectrum and Spectrum Compact CE Systems and the Applied Biosystems® 3130, 3130xl, 3500 and 3500xL Genetic Analyzers.

The PowerPlex® 6C Matrix Standard consists of DNA fragments labeled with six different fluorescent dyes in one tube: FL-6C, JOE-6C, TMR-6C, CXR-6C, TOM-6C and WEN.

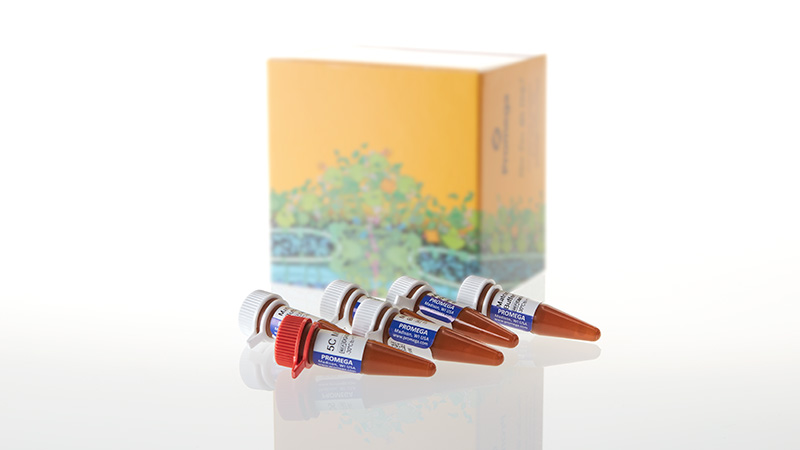

PowerPlex® 5C Matrix Standards

The PowerPlex® 5C Matrix Standard (Cat.# DG4850) allows the following systems to be analyzed on the Spectrum and Spectrum Compact CE Systems and the Applied Biosystems® 3130, 3130xl, 3500 and 3500xL Genetic Analyzers:

  • PowerPlex® ESX
  • PowerPlex® ESI
  • PowerPlex® 18D
  • PowerPlex® 21
  • PowerPlex® Y23
  • PowerPlex® Fusion

The PowerPlex® 5C Matrix Standard contains matrix fragments labeled with five fluorescent dyes: Fluorescein, JOE, TMR-ET, CXR-ET and WEN.

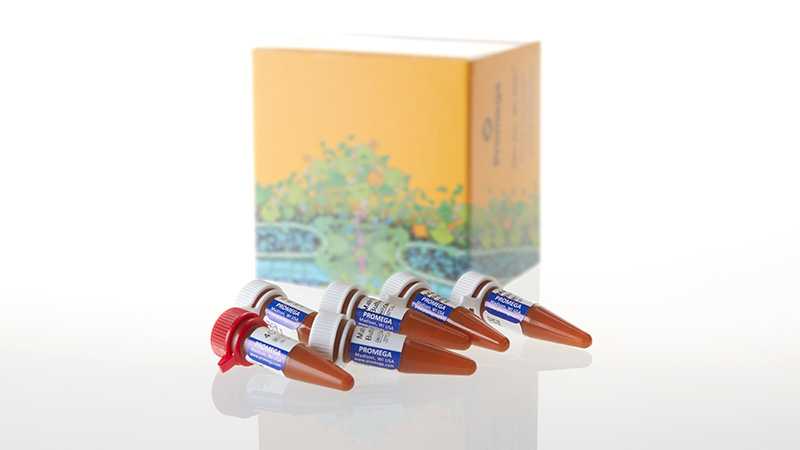

PowerPlex® 4C Matrix Standards

The PowerPlex® 4C Matrix Standard (Cat.# DG4800) allows the following systems to be analyzed on the Applied Biosystems® 3130, 3130xl, 3500 and 3500xL Genetic Analyzers:

  • PowerPlex® 16
  • PowerPlex® 16 HS
  • PowerPlex® CS7
  • MSI Analysis
  • GenePrint® 10

The PowerPlex® 4C Matrix Standard contains matrix fragments labeled with four fluorescent dyes: Fluorescein, JOE, TMR and CXR.

Especificaciones

You are viewing: DG4800 Cambiar Configuración

Contenido

Item Part # Presentación

4C Matrix Mix

DG431A 1 × 150μl

Matrix Dilution Buffer

DM145A 5 × 200μl

Certificado de Análisis

Search by lot number

Use Restrictions

Not For Medical Diagnostic Use.

Condiciones de Almacenaje

EE

Especificaciones

You are viewing: DG4850 Cambiar Configuración

Contenido

Item Part # Presentación

5C Matrix Mix

DG430A 1 × 150μl

Matrix Dilution Buffer

DM145A 5 × 200μl

Certificado de Análisis

Search by lot number

Use Restrictions

Not For Medical Diagnostic Use.

Condiciones de Almacenaje

EE

Patentes y Exclusiones

U.S. Pat. No. 9,139,868, European Pat. No. 2972229, Japanese Pat. No. 6367307 and other patents pending.

TMR-ET, CXR-ET and WEN dyes are proprietary.

Especificaciones

You are viewing: DG4900 Cambiar Configuración

Contenido

Item Part # Presentación

6C Matrix Mix

DG429A 1 × 150μl

Matrix Dilution Buffer

DM145A 5 × 200μl

Certificado de Análisis

Search by lot number

Use Restrictions

Not For Medical Diagnostic Use.

Condiciones de Almacenaje

EE

Patentes y Exclusiones

U.S. Pat. No. 9,139,868, European Pat. No. 2972229, Japanese Pat. No. 6367307 and other patents pending.

TMR-6C, CXR-6C, TOM-6C and WEN-6C dyes are proprietary.

Especificaciones

You are viewing: DG5010 Cambiar Configuración

Contenido

Item Part # Presentación

8C Matrix Mix

DG854A 1 × 150μl

Matrix Dilution Buffer

DM145A 5 × 200μl

Certificado de Análisis

Search by lot number

Use Restrictions

Not For Medical Diagnostic Use.

Condiciones de Almacenaje

CC
