Internal Lane Standard 600

DG1071_Internal-Lane-Standard-600--150ul_3
customize-this-small
View information on global supply logistics

22 Bands Ranging in Size from 60bp to 600bp

  • 60–200bp fragments are spaced at 20bp intervals
  • 200–500bp fragments are spaced every 25 bases
  • 500–600bp fragments are spaced every 50 bases

Size

Catalog number selected: DG1071

$ 426.00
Your price:
Add to Cart
This product is discontinued
Add to Helix
This product is available under our Early Access program - Learn More
This product is available under our Catalog (FT) program - Learn More
Internal Lane Standard 600
150μl
$ 426.00
Your price: Log in

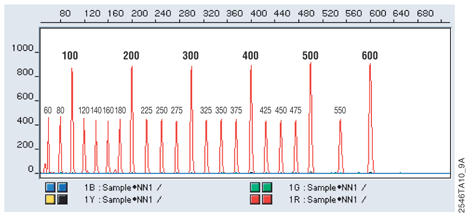

The Internal Lane Standard 600 (ILS 600) consists of 22 bands ranging in size from 60bp to 600bp. Fragments of 60–200bp are spaced at 20bp intervals, fragments of 200–500bp are spaced every 25 bases, and fragments of 500–600bp are spaced every 50 bases. Fragments that are multiples of 100 bases have fluorescence intensities approximately twice that of other fragments to simplify size assignment. The DNA ladder is double-stranded and asymmetrically labeled with carboxy-X-rhodamine (CXR). The Internal Lane Standard 600 is used to assign sizes to DNA fragments separated by electrophoresis and detected using a variety of fluorescence-detection instruments (e.g., Spectrum Compact CE System and Applied Biosystems® 3130, 3130xl, 3500 and 3500xL Genetic Analyzers). ILS 600 is commonly used as an internal size marker for other applications and can be visualized by detecting fluorescent emission at 597nm after excitation at 576nm.

Reference

  1. McLaren, R.S. et al. (2008) Forensic Sci. Intl. Genet. 2, 257–73.
2546CC01_9A-W

Specifications

What's in the box?

Item Part # Size

Internal Lane Standard 600

DG107A 1 × 150μl

Certificate of Analysis

Search by lot number

Use Restrictions

For Laboratory Use. Outside of the United States, this product is intended for research use only unless otherwise stated.

Storage Conditions

BB
