Lumit® VEGF-A (Human) Immunoassay
ELISA Alternative for VEGF-A Detection
- Cell-based assay with fast add-and-read protocol
- Luminescent detection with any plate-reading luminometer
- Scalable to 96- or 384- well plates, protocols included
- Pack sizes show assay number for 96-well plates
Catalog Number:
Choose a product
Size
$ 665.00

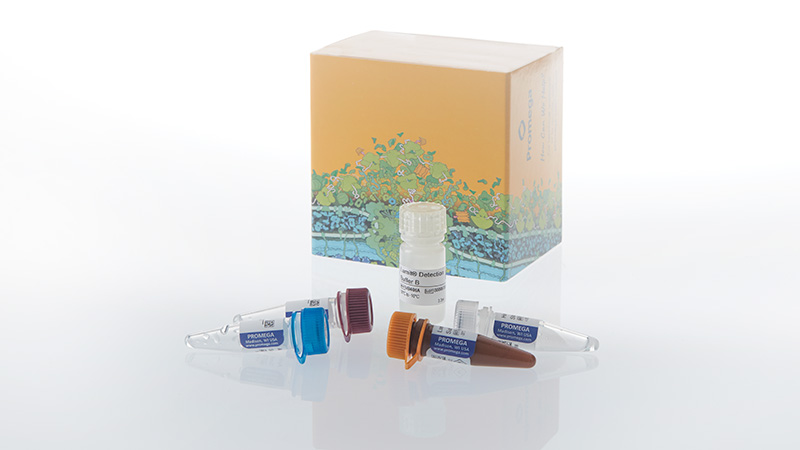

Catalog Number: W1880
$ 4,326.00

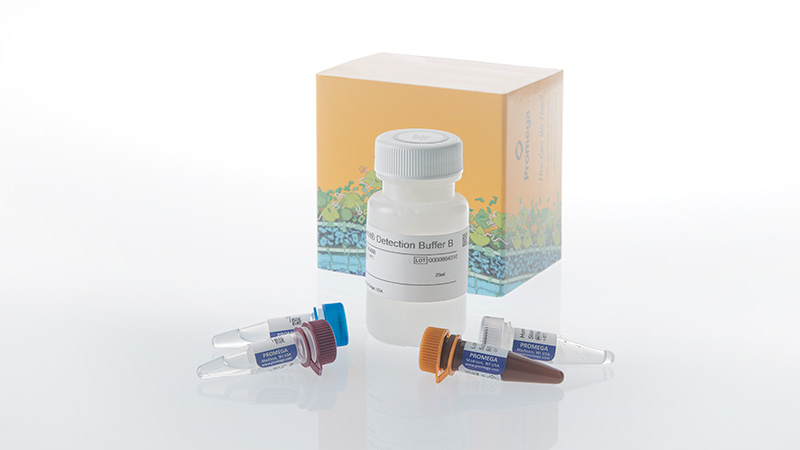

Catalog Number: W1881
$ 2,487.00

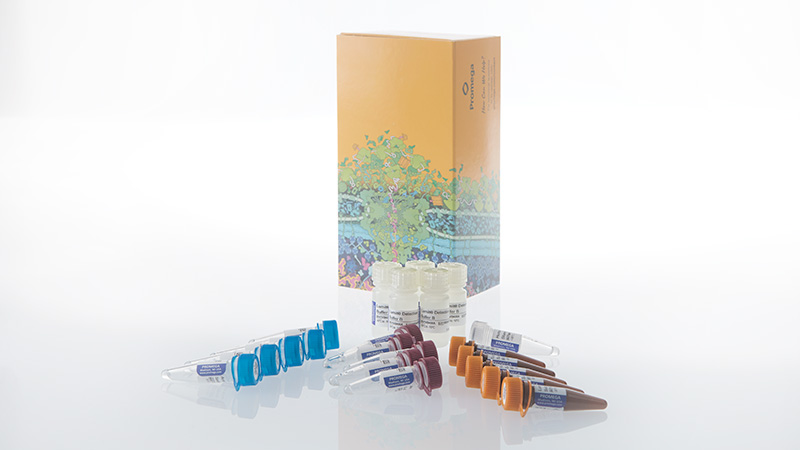

Catalog Number: W1882
$ 143.00

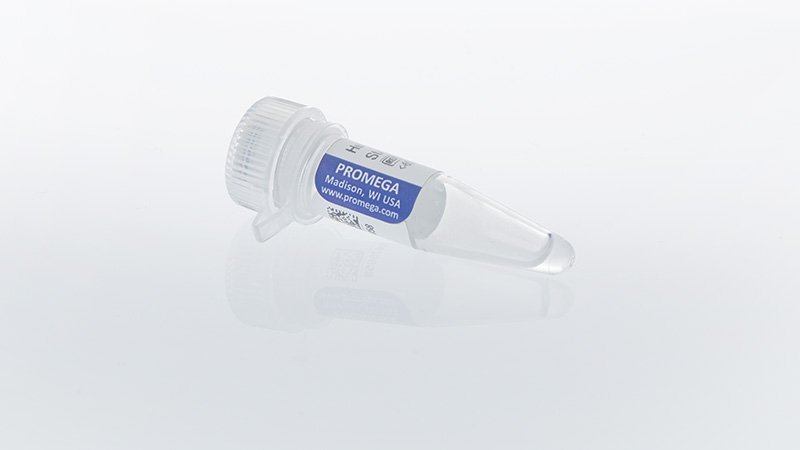

Catalog Number: W188A-C
Acceder to see your price
Quantify VEGF-A Release in Less Than 70 Minutes
The Lumit® VEGF-A Immunoassay quantitatively measures released VEGF-A in cell culture samples using a simple, no-wash protocol. Just add labeled antibodies to the sample, add detection reagent and read luminescent signal using a standard plate-reading luminometer—the entire protocol is completed in less than 70 minutes. Use the assay directly on cells in culture or culture medium transferred to a separate assay plate.
Note: The total number of assays per kit will vary based on final well volume.
For standard well volumes:
- 100 assay kits: applicable for 100 assays in 96-well plates or 400 assays in 384-well plates.
- 500 assay kits: applicable for 500 assays in 96-well plates or 2,000 assays in 384-well plates.
- 1,000 assay kits: applicable for 1,000 assays in 96-well plates or 4,000 assays in 384-well plates.
How the Lumit® VEGF-A Immunoassay Works
Primary antibodies to VEGF-A were selected for their specific and sensitive detection and labeled with the LgBiT and SmBiT subunits of NanoBiT® Luciferase. In the presence of VEGF-A, the subunits come together to form an active luciferase enzyme. Addition of optimized substrate generates a bright luminescent signal proportional to VEGF-A levels. The assay recognizes human VEGF-A, but not mouse or rat VEGF-A. It is specific for VEGF-A (121, 165 and 183) and does not cross-react with VEGF-B, -C and -D family members.
Avoid Tedious Wash Steps with Simple One-Plate Protocol
Broad Linear Range of Lumit® VEGF-A Detection
The picomolar to nanomolar linear detection range of the Lumit® VEGF-A Immunoassay covers expected concentrations for most cell models.
|
Specification |
Lumit® VEGF-A Immunoassay |
|
|
Dynamic Range |
17.3–7,500pg/ml |
|
|
Limit of Detection |
4.8pg/ml (3 SD above background) |
|
|
Minimal Detectable Dose (MDD) |
3.6pg/ml (2 SD above background) |
|
|
Assay Time |
70 minutes |
|
|
Sample Type |
Cell culture supernatants |
|
SD=Standard Deviation
High-Throughput Screening Applications
Optimizing the Lumit® IL-6 Immunoassay for High-Throughput Drug Screening
In this webinar, we share key considerations for scaling Lumit® Immunoassays from a single 96-well plate to many 364-well plates and offer tips for optimizing Lumit® Immunoassays for HTS applications. You will also hear Galapagos scientist Dr. Nick Verstraeten share how his team used the Lumit® IL-6 Immunoassay in a screening campaign for antiviral drugs.
Lumit® Cytokine Assay Automation for High-Throughput Screening
In this poster, see miniaturization and automation data for Lumit® cytokine assays.
Reproducible Detection of VEGF-A Released from Human Epithelial Cells
Human A549 epithelial cells (20,000/well) were cultured in 96-well plates, and medium was refreshed at different timepoints to track VEGF-A accumulation over two days. After incubation, the Lumit® VEGF-A Immunoassay was used to quantitate VEGF-A in the media.
For a biotech that understands time is of significant value, the Lumit® Immunoassays are an essential way for us to gather reliable data fast so that we can reach conclusions and make decisions sooner.
Jonathan Chow, Principal Scientist, Corner Therapeutics
Protocols
Specifications
Catalog Number:
Contenido
| Item | Part # | Presentación |
|---|---|---|
Lumit® Detection Substrate B |
VB405A | 1 × 160μl |
Lumit® Detection Buffer B |
VB406A | 1 × 3.2ml |
Anti-hVEGF-A mAb-SmBiT, 500X |
W189A | 1 × 30μl |
Anti-hVEGF-A mAb-LgBiT, 500X |
W190A | 1 × 30μl |
Human VEGF-A Standard |
W188A | 1 × 25μl |
SDS
Search for SDSCertificado de Análisis
Use Restrictions
For Research Use Only. Not for Use in Diagnostic Procedures.Condiciones de Almacenaje
U.S. Pat. No. 8,809,529, European Pat. No. 2635582, Japanese Pat. No. 5889910 and other patents and patents pending.
U.S. Pat. Nos. 9,797,889, 9,797,890, 10,107,800 and 11,493,504; European Pat. No. 2970412; Japanese Pat. Nos. 7280842 and 7532562; and other patents and patents pending.
Contenido
| Item | Part # | Presentación |
|---|---|---|
Lumit® Detection Substrate B |
VB405B | 1 × 1.25ml |
Lumit® Detection Buffer B |
VB406B | 1 × 25ml |
Anti-hVEGF-A mAb-SmBiT, 500X |
W189B | 1 × 300μl |
Anti-hVEGF-A mAb-LgBiT, 500X |
W190B | 1 × 300μl |
Human VEGF-A Standard |
W188A | 1 × 25μl |
SDS
Search for SDSCertificado de Análisis
Use Restrictions
For Research Use Only. Not for Use in Diagnostic Procedures.Condiciones de Almacenaje
U.S. Pat. No. 8,809,529, European Pat. No. 2635582, Japanese Pat. No. 5889910 and other patents and patents pending.
U.S. Pat. Nos. 9,797,889, 9,797,890, 10,107,800 and 11,493,504; European Pat. No. 2970412; Japanese Pat. Nos. 7280842 and 7532562; and other patents and patents pending.
Contenido
| Item | Part # | Presentación |
|---|---|---|
Lumit® Detection Substrate B |
VB405A | 5 × 160μl |
Lumit® Detection Buffer B |
VB406A | 5 × 3.2ml |
Anti-hVEGF-A mAb-SmBiT, 500X |
W189A | 5 × 30μl |
Anti-hVEGF-A mAb-LgBiT, 500X |
W190A | 5 × 30μl |
Human VEGF-A Standard |
W188A | 1 × 25μl |
SDS
Search for SDSCertificado de Análisis
Use Restrictions
For Research Use Only. Not for Use in Diagnostic Procedures.Condiciones de Almacenaje
U.S. Pat. No. 8,809,529, European Pat. No. 2635582, Japanese Pat. No. 5889910 and other patents and patents pending.
U.S. Pat. Nos. 9,797,889, 9,797,890, 10,107,800 and 11,493,504; European Pat. No. 2970412; Japanese Pat. Nos. 7280842 and 7532562; and other patents and patents pending.
Contenido
| Item | Part # | Presentación |
|---|---|---|
Human VEGF-A Standard |
W188A | 1 × 25μl |
SDS
Search for SDSCertificado de Análisis
Use Restrictions
For Research Use Only. Not for Use in Diagnostic Procedures.Condiciones de Almacenaje
