pSP-luc+NF Fusion Vector

Firefly Luciferase Cassette Vector for Constructing N-Terminal Fusions

  • Multiple cloning regions are positioned at the 5´ and 3´ ends of luc to provide maximum flexibility in cloning
  • Unique BstEII site located immediately downstream of the luciferase ATG translation codon for positioning N-terminal fusions
  • Not intended for expressing luciferase in eukaryotic cells


Catalog number selected: E4471

$ 431.00 Your price: Log In

Add to Helix
pSP-luc+NF Fusion Vector
$ 431.00
Your price: Log In

The pSP-luc+NF Fusion Vector is a luciferase cassette vector containing the engineered firefly luciferase gene, luc+NF. The luc+NF gene is related to the luc+ gene found in the pGL3 family of eukaryotic reporter vectors but has been further modified for maximum flexibility in constructing N-terminal fusions (NF) with luciferase. Subcloning luc+NF into expression vectors provides a useful genetic reporter with exceptional sensitivity. The pSP-luc+NF Fusion Vector is not itself intended for the expression of luciferase in eukaryotic cells, because it does not contain eukaryotic promoters, enhancers or polyadenylation signals.

A unique BstEII site has been inserted immediately downstream of the luciferase ATG translation codon, allowing cloned inserts to be positioned immediately downstream of the luc+NF initiation codon. This vector is recommended specifically for applications where N-terminal fusion proteins do not contain an internal ATG codon at the luciferase junction.

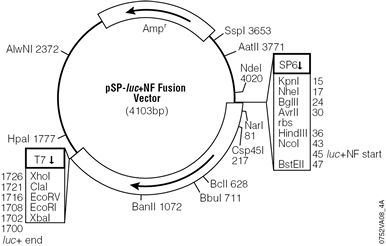

The luc+NF gene is positioned downstream of an SP6 promoter and a ribosome binding site. An opposing T7 promoter is located immediately downstream of luc+NF. Thus, the pSP-luc+NF Fusion Vector provides a convenient template for the in vitro synthesis of both sense and antisense luciferase transcripts for studies involving in situ hybridization, RNA processing, RNA transfection or coupled in vitro transcription/translation and protein folding. Multiple cloning regions containing recognition sequences for commonly used restriction enzymes are positioned at the 5´ and 3´ ends of luc+NF to provide maximum flexibility in cloning. Luciferase enzymatic activity can be assayed most efficiently using one of the Luciferase Assay Systems.


pSP-luc+NF Fusion Vector GenBank® Accession Number U47123 and vector sequence text file



What's in the box?

Item Part # Size

pSP-luc+NF Fusion Vector

E447A 1 × 20μg


Choose language:

Certificate of Analysis

Search for Specific Certificate:

View more results
View more results

Use Restrictions

For Research Use Only. Not for Use in Diagnostic Procedures.

Storage Conditions


Patents and Disclaimers

BY USE OF THIS PRODUCT, RESEARCHER AGREES TO BE BOUND BY THE TERMS OF THIS LIMITED USE LABEL LICENSE. If the researcher is not willing to accept the terms of this label license, and the product is unused, Promega will accept return of the unused product and provide the researcher with a full refund.
Researchers may use this product for research use only, no commercial use is allowed. "Commercial use" means any and all uses of this product and derivatives by a party for money or other consideration and may include but is not limited to use in: (1) product manufacture; and (2) to provide a service, information or data; and/or resale of the product or its derivatives, whether or not such product or derivatives are resold for use in research. Researchers shall have no right to modify or otherwise create variations of the nucleotide sequence of the luciferase gene except that researchers may: (1) create fused gene sequences provided that the coding sequence of the resulting luciferase gene has no more than four deoxynucleotides missing at the affected terminus compared to the intact luciferase gene sequence, and (2) insert and remove nucleic acid sequences in splicing research predicated on the inactivation or reconstitution of the luminescence of the encoded luciferase. No other use or transfer of this product or derivatives is authorized without the prior express written consent of Promega. In addition, researchers must either: (1) use luminescent assay reagents purchased from Promega for all determinations of luminescence activity of this product and its derivatives; or (2) contact Promega to obtain a license for use of the product and its derivatives. Researchers may transfer derivatives to others for research use provided that at the time of transfer a copy of this label license is given to the recipients and recipients agree to be bound by the terms of this label license. With respect to any uses outside this label license, including any diagnostic, therapeutic or prophylactic uses, please contact Promega for supply and licensing information. PROMEGA MAKES NO REPRESENTATIONS OR WARRANTIES OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING FOR MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE WITH REGARDS TO THE PRODUCT. The terms of this label license shall be governed under the laws of the State of Wisconsin, USA. This label license relates to Promega patents and/or patent applications on improvements to the luciferase gene.
