Quantus™ Fluorometer: Simple, Sensitive DNA and RNA Quantitation

Quantus Fluorometer

Highly sensitive, affordable, single-tube fluorometer

Easy, intuitive controls.

Calculates concentration automatically.

Ready to use with QuantiFluor® Dyes, also compatible with other fluorescent assays.

Stores the last 50 readings. Can be connected to a computer to transfer data in real time.

Recommended for Next-Gen Sequencing. Used with several NGS systems, including Illumina (HiSeq/miSeq), Roche (454) and LifeTech (ion Torrent and ion Proton) Systems.

  • Fluorescence-based nucleic acid quantification methods are more sensitive than absorbance-based methods, allowing you to quantitate low-level DNA samples accurately.
  • Use of the Quantus™ Fluorometer with QuantiFluor® Dyes provides sensitivities that are up to 200 times higher than that of absorbance-based quantitation using the NanoDrop® spectrophotometer, depending on the assay used.
  • Quantus™ Fluorometer is ten times more sensitive than the Qubit® 3.0 Fluorometer when using the Promega QuantiFluor® dsDNA Dye. Using a standard protocol the dye can detect 10pg/µl dsDNA.
  • Custom protocols can be created for the Quantus™ Fluorometer to detect even lower amounts.
  • The sensitivity and broad dynamic range allow you to complement your absorbance-based methods and quantify your target molecule over a wider range of concentrations.
    *Data presented are based on 1µl sample input per assay. Quantitation of more dilute samples is possible using more input dsDNA per assay.

QuantiFluor® ONE dsDNA System provides a fluorescent double-stranded DNA-binding dye in an add-and-read format for both the dye and the standard. As easy to use as NanoDrop® methods, but more sensitive for low-concentration samples.

Learn more »

QuantiFluor® RNA System enables sensitive quantitation of small amounts of RNA in solution including measuring yields of in vitro transcribed RNA and measuring RNA before performing downstream analysis including cDNA library preparation or RNA-seq.

Learn more »

The Quantus NGS Starter Package brings you highly sensitive and easy to use DNA quantitation for your NGS applications all in one bundle. Contents include 1 Quantus Fluorometer, 1 QuantiFluor ONE dsDNA System (500rxns), and 500 PCR tubes

Learn more »

QuantiFluor® dsDNA System enables sensitive quantitation of double-stranded DNA in solution. Specific quantitation of dsDNA with minimal binding to ssDNA, RNA, protein or interfering compounds.

Learn more »

QuantiFluor® ssDNA System provides a fluorescent dye that enables sensitive quantitation of small amounts of single-stranded DNA in solution.

Learn more »

Instrument Design

  • Two fluorescent channels:
    • Red fluorescence channel: Excitation: 640nm shortpass (wavelengths up to 640nm); Emission 660–720nm
    • Blue fluorescence channel: Excitation: 495nm shortpass (wavelengths up to 495nm); Emission 510–580nm
  • Speed and convenience. The calibration process saves time by eliminating the need to generate a standard curve for each set of unknown samples. Simply measure the fluorescence of your blank sample and the standard that represents the highest point on your standard curve. The Quantus™ Fluorometer saves the calibration data for future measurements.
  • Compact size at only 22.7 x 11.5 x 4.5cm.

Quantus Touchscreen

  • Intuitive navigation and a large 3-inch liquid crystal display screen.
  • No computer is necessary to use the Quantus™ Fluorometer, but after installing the Quantus™ Software (free of charge) you can automatically transfer your quantitation results from the Quantus™ Fluorometer to a personal computer in real time.
  • Easily customize sample names, and view concentration results, raw values, sample volumes and a quality check.
  • Ability to easily export results into Microsoft® Excel.

Quantus Touchscreen Zoom


Size  22.7 × 11.5 × 4.5cm (L × W × H)
Weight 400 grams
Linear Dynamic Range Five orders of magnitude, assay-dependent
Detectors Solid state silicon sensor
Excitation Filters Red: 640nm shortpass (wavelengths up to 640nm)
Blue: 495nm shortpass (wavelengths up to 495nm)
Emission Filters Red: 660–720nm
Blue: 510–580nm
Calibration Type Single-point (blank and standard)
Sample Tube We recommend Axygen thin-walled PCR tubes (Axygen Cat.# PCR-05-C, available from Fisher or VWR)
Automatic Sleep Mode After 1 hour of inactivity
Power Requirements 5V, 0.2A Maximum
Operating System Requirements
(for optional Quantus™ Software)
Windows® 8, Windows® 7 (32 or 64 bit)
.NET Framework 4.0 or later
At least one USB port available

The Quantus™ Fluorometer is backed by a one-year warranty.

To receive one additional year of replacement warranty, free of charge, register your instrument within 90 days from the date of purchase.

Your personal fluorometer could be as close as your nearest Helix® cabinet.

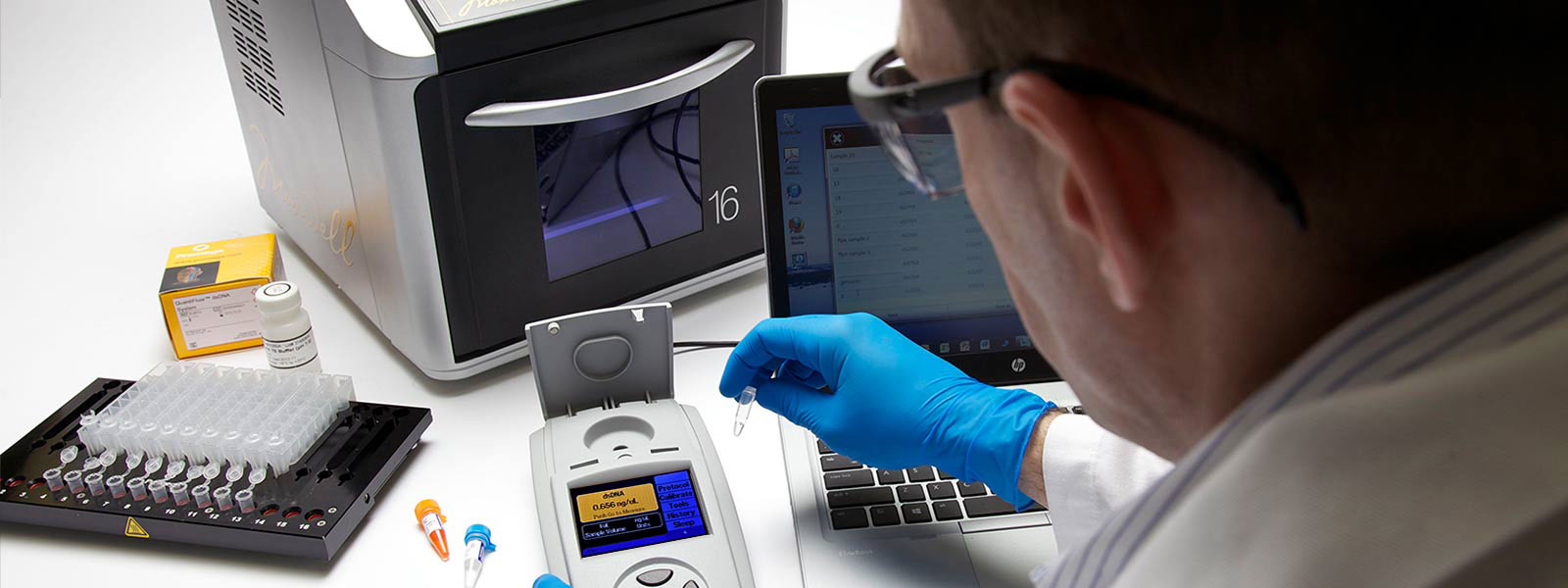

Quantus™ Fluorometer is an ideal partner to the Maxwell® 16 Instrument.

The high sensitivity makes the Quantus™ Fluorometer perfect when working with samples types such as formalin-fixed paraffin-embedded (FFPE) tissue that contain low levels of nucleic acid.

You can confidently quantify nucleic acid from FFPE tissues and proceed to your downstream assays, knowing that there is DNA or RNA present.

Successful and accurate quantification leads to higher success in downstream assays such as PCR, cloning, transfection and next-generation sequencing.

You can automatically transfer your quantitation results from the Quantus™ Fluorometer to a personal computer using the Quantus™ Software. Export results easily into Microsoft® Excel.
