Signaling Pathway Analysis (Minimal Promoter-Driven) Firefly Luciferase Vectors

See All pGL4 Vectors
Creating a cell line with an indicator of a functional signaling pathway is useful for deciphering the components in a signaling pathway. These tools are made by insertion of multiple repeats of a response element upstream of a minimal promoter (minP). The minP vectors are available with three varieties of engineered firefly luciferase genes: luc2, luc2P or luc2CP. The luc2 gene is engineered to remove most cryptic transcription factor binding sites and improve mammalian expression through codon optimization. The luc2P and luc2CP and RapidResponse™ genes are luc2 genes appended with de...

Expand to Read More »

  • Share
  • Print
  • Email
  • Products
  • Specifications
  • Figures & Tables
  • Product Resources
  • Patents & Disclaimers
  • Prices valid for your Promega branch only
Product Size Conc. Catalog # *List Price Order QTY Add to Cart

pGL4.23[luc2/minP] Vector

Close Window

pGL4.23[luc2/minP] Vector

 Components

  • pGL4.23[luc2/minP] Vector

    E841A1 x 20μg
20μg
- E8411 $ 330.00 Add to cart

pGL4.24[luc2P/minP] Vector

Close Window

pGL4.24[luc2P/minP] Vector

 Components

  • pGL4.24[luc2P/minP] Vector

    E842A1 x 20μg
20μg
- E8421 $ 330.00 Add to cart

pGL4.25[luc2CP/minP] Vector

Close Window

pGL4.25[luc2CP/minP] Vector

 Components

  • pGL4.25[luc2CP/minP] Vector

    E843A1 x 20μg
20μg
- E8431 $ 330.00 Add to cart

pGL4.26[luc2/minP/Hygro] Vector

Close Window

pGL4.26[luc2/minP/Hygro] Vector

 Components

  • pGL4.26[luc2/minP/Hygro] Vector

    E844A1 x 20μg
20μg
- E8441 $ 330.00 Add to cart

pGL4.27[luc2P/minP/Hygro] Vector

Close Window

pGL4.27[luc2P/minP/Hygro] Vector

 Components

  • pGL4.27[luc2P/minP/Hygro] Vector

    E845A1 x 20μg
20μg
- E8451 $ 330.00 Add to cart

pGL4.28[luc2CP/minP/Hygro] Vector

Close Window

pGL4.28[luc2CP/minP/Hygro] Vector

 Components

  • pGL4.28[luc2CP/minP/Hygro] Vector

    E846A1 x 20μg
20μg
- E8461 $ 330.00 Add to cart

pGL4.29[luc2P/CRE/Hygro] Vector

Close Window

pGL4.29[luc2P/CRE/Hygro] Vector

 Components

  • pGL4.29[luc2P/CRE/Hygro] Vector

    E847A1 x 20μg
20μg
- E8471 $ 330.00 Add to cart

pGL4.30[luc2P/NFAT-RE/Hygro] Vector

Close Window

pGL4.30[luc2P/NFAT-RE/Hygro] Vector

 Components

  • pGL4.30[luc2P/NFAT-RE/Hygro] Vector

    E848A1 x 20μg
20μg
- E8481 $ 330.00 Add to cart

pGL4.32[luc2P/NF-κB-RE/Hygro] Vector

Close Window

pGL4.32[luc2P/NF-κB-RE/Hygro] Vector

 Components

  • pGL4.32[luc2P/NF-κB-RE/Hygro] Vector

    E849A1 x 20μg
20μg
- E8491 $ 330.00 Add to cart

pGL4.33[luc2P/SRE/Hygro] Vector

Close Window

pGL4.33[luc2P/SRE/Hygro] Vector

 Components

  • pGL4.33[luc2P/SRE/Hygro] Vector

    E134A1 x 20μg
20μg
- E1340 $ 330.00 Add to cart

pGL4.34[luc2P/SRF-RE/Hygro] Vector

Close Window

pGL4.34[luc2P/SRF-RE/Hygro] Vector

 Components

  • pGL4.34[luc2P/SRF-RE/Hygro] Vector

    E135A1 x 20μg
20μg
- E1350 $ 330.00 Add to cart

GloResponse™ CRE-luc2P HEK293 Cell Line

Close Window

GloResponse™ CRE-luc2P HEK293 Cell Line

 Components

  • GloResponse™ CRE-luc2P HEK293 Cell Line

    E850A2 x 1 vial
2 vials
- E8500 $ 10,494.00 Add to cart

GloResponse™ NFAT-RE-luc2P HEK293 Cell Line

Close Window

GloResponse™ NFAT-RE-luc2P HEK293 Cell Line

 Components

  • GloResponse™ NFAT-RE-luc2P HEK293 Cell Line

    E851A2 x 1 vial
2 vials
- E8510 $ 10,494.00 Add to cart

GloResponse™ NF-κB-RE-luc2P HEK293 Cell Line

Close Window

GloResponse™ NF-κB-RE-luc2P HEK293 Cell Line

 Components

  • NF-κB-luc2P HEK293 Cell Line

    E852A2 x 1 vial
2 vials
- E8520 $ 10,494.00 Add to cart


You Also May Be Interested In

GenBank®/EMBL Accession Number

pGL4.23[luc2/minP] Accession Number DQ904455; pGL4.23[luc2/minP] Vector sequence text file.
pGL4.24[luc2P/minP] Accession Number DQ904456; pGL4.24[luc2P/minP] Vector sequence text file.
pGL4.25[luc2CP/minP] Accession Number DQ904457; pGL4.25[luc2CP/minP] Vector sequence text file.
pGL4.26[luc2/minP/Hygro] Accession Number DQ904458; pGL4.26[luc2/minP/Hygro] Vector sequence text file.
pGL4.27[luc2P/minP/Hygro] Accession Number DQ904459; pGL4.27[luc2P/minP/Hygro] Vector sequence text file.
pGL4.28[luc2CP/minP/Hygro] Accession Number DQ904460; pGL4.28[luc2CP/minP/Hygro] Vector sequence text file.
pGL4.29[luc2P/CRE/Hygro] Accession Number DQ904461; pGL4.29[luc2P/CRE/Hygro] Vector sequence text file.
pGL4.30[luc2P/NFAT-RE/Hygro] Accession Number DQ904462; pGL4.30[luc2P/NFAT-RE/Hygro] Vector sequence text file.
pGL4.32[luc2P/NF-κB-RE/Hygro] Accession Number EU581860; pGL4.32[luc2P/NF-κB-RE/Hygro] Vector sequence text file.
pGL4.33[luc2P/SRE/Hygro] Accession Number FJ773212; pGL4.33[luc2P/SRE/Hygro] Vector sequence text file.
pGL4.34[luc2P/SRF-RE/Hygro] Accession Number FJ773213; pGL4.34[luc2P/SRF-RE/Hygro] Vector sequence text file.

Storage Conditions

Store at –20°C.

For product intended use please see Patents & Disclaimers tab.

Figures

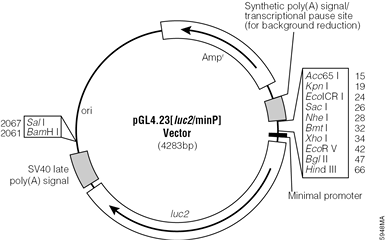

pGL4.23[luc2/minP] Vector.Figure 1. pGL4.23[luc2/minP] Vector.

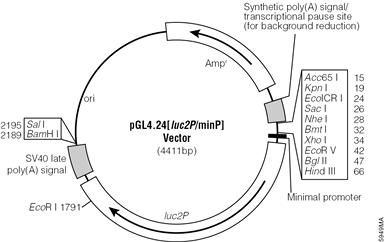

pGL4.24[luc2P/minP] Vector.Figure 2. pGL4.24[luc2P/minP] Vector.

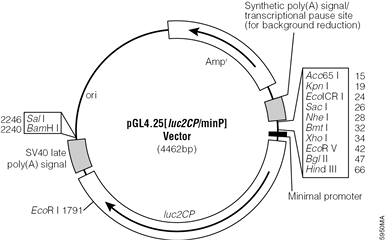

pGL4.25[luc2CP/minP] Vector.Figure 3. pGL4.25[luc2CP/minP] Vector.

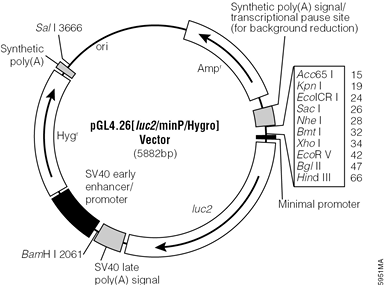

pGL4.26[luc2/minP/Hygro] Vector.Figure 4. pGL4.26[luc2/minP/Hygro] Vector.

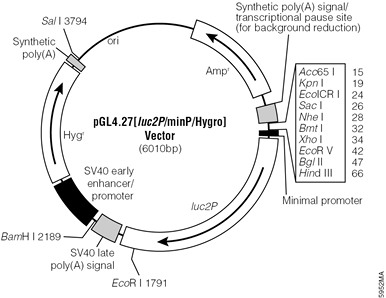

pGL4.27[luc2P/minP/Hygro] Vector.Figure 5. pGL4.27[luc2P/minP/Hygro] Vector.

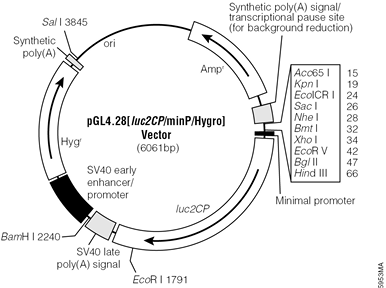

pGL4.28[luc2CP/minP/Hygro] Vector.Figure 6. pGL4.28[luc2CP/minP/Hygro] Vector.

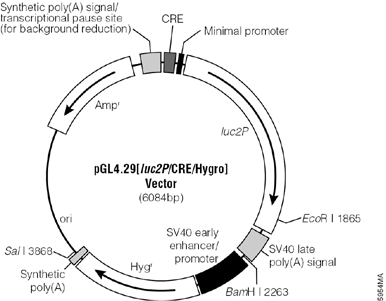

pGL4.29[luc2P/CRE/Hygro] Vector.Figure 7. pGL4.29[luc2P/CRE/Hygro] Vector.
pGL4.30[luc2P/NFAT-RE/Hygro] Vector.Figure 8. pGL4.30[luc2P/NFAT-RE/Hygro] Vector.

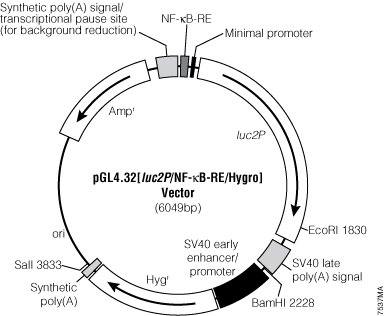

pGL4.32[luc2P/NF-KB-RE/Hygro] Vector.Figure 9. pGL4.32[luc2P/NF-kappa-B-RE/Hygro] Vector.
pGL4.33[luc2P/SRE/Hygro] Vector.Figure 10. pGL4.33[luc2P/SRE/Hygro] Vector.
pGL4.34[luc2P/SRF-RE/Hygro] Vector.Figure 11. pGL4.34[luc2P/SRF-RE/Hygro] Vector.

Tables

Response element pGL4 Vectors.Table 1. Response Element pGL4 Vectors.

/~/media/Images/Resources/Tables/9100-9199/9162LA.ashx

Use Restrictions

E8411, E8421, E8431, E8441, E8451, E8461, E8471, E8481, E8491, E1340, E1350, E8500, E8510, E8520 For Research Use Only. Not for Use in Diagnostic Procedures.

Patents - Disclaimers

All Cat.# on this page: BY USE OF THIS PRODUCT, RESEARCHER AGREES TO BE BOUND BY THE TERMS OF THIS LIMITED USE STATEMENT. If the researcher is not willing to accept the conditions of this limited use statement, and the product is unused, Promega will accept return of the unused product and provide the researcher with a full refund.

Researchers may use this product for research use only, no commercial use is allowed. Commercial Use means any and all uses of this product and derivatives by a party for monetary or other consideration and may include but is not limited to use in: (1) product manufacture; and (2) to provide a service, information or data; and/or resale of the product or its derivatives, whether or not such product or derivatives are resold for use in research. Researchers shall have no right to modify or otherwise create variations of the nucleotide sequence of the luciferase gene except that Researchers may: (1) create fused gene sequences provided that the coding sequence of the resulting luciferase gene has no more than four deoxynucleotides missing at the affected terminus compared to the intact luciferase gene sequence, and (2) insert and remove nucleic acid sequences in splicing research predicated on the inactivation or reconstitution of the luminescence of the encoded luciferase. No other use or transfer of this product or derivatives is authorized without the prior express written consent of Promega. In addition, Researchers must either: (1) use luminescent assay reagents purchased from Promega Corporation for all determinations of luminescence activity of this product and its derivatives; or (2) contact Promega to obtain a license for use of the product and its derivatives. Researchers may transfer derivatives to others for research use provided that at the time of transfer a copy of this label license is given to the recipients and recipients agree to be bound by the terms of this label license. With respect to any uses outside this label license, including any diagnostic, therapeutic or prophylactic uses, please contact Promega for supply and licensing information. PROMEGA MAKES NO REPRESENTATIONS OR WARRANTIES OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING FOR MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE WITH REGARDS TO THE PRODUCT. The terms of this agreement shall be governed under the laws of the State of Wisconsin, USA. The above license relates to Promega patents and/or patent applications on improvements to the luciferase gene.

All Cat.# on this page: U.S. Pat. No. 5,670,356.

All Cat.# on this page: U.S. Pat. No. 8,008,006 and European Pat. No. 1341808.

Cat.# E8411, E8451, E8461, E8471, E8481, E8491, E1340, E1350: U.S. Pat. No. 7,728,118.

Cat.# E8411, E8421, E8431, E8441, E8451, E8461, E8471, E8481, E8500, E8510, E8520: Patent Pending.

All Cat.# on this page: The method of recombinant expression of Coleoptera luciferase is covered by U.S. Pat. Nos. 5,583,024, 5,674,713 and 5,700,673. A license (from Promega for research reagent products and from The Regents of the University of California for all other fields) is needed for any commercial sale of nucleic acid contained within or derived from this product.

Cat.# E8500, E8510, E8520: Use of Genetically Modified Microorganisms (GMM)
Information for European Customers: These products are genetically modified as described in Promega technical literature. As a condition of sale, use of this product must be in accordance with all applicable local guidelines on the contained use of genetically modified microorganisms, including the Directive 2009/41/EC of the European Parliament and of the Council.

Cat.# E8500, E8510, E8520: Commercial use of this cell line requires a license from AdVec Inc.

Cat.# E8500, E8510, E8520: HEK293 cells were obtained under license from AdVec Inc.
